Hospital labeler M510-UK-BWS

laboratorybarcode labeldigital

Description
The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you’re in a lab, field or facility, this printer works as hard as you do.

Features

• Create large 38.10 mm labels with edge-to-edge printing and a wide range of text sizes
• Print up to 38.10 mm per second to get work done faster
• Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
• Enter data with more accuracy as you work between an intuitive QWERTY keypad, a separate numeric keypad or a PC
• Backlit full-colour LCD graphics display for easier labelling in low-lit areas
• Durably designed to withstand 1.2 m drops
• Ships with a licence for the Brady Workstation suite (Product & Wire Identification, Safety & Facility Identification, or Lab Identification)
• The rechargeable NiMH battery prints up to 1700 labels on a single charge

Key Features

• Continuous vs Die Cut Labels: Continuous, Die-cut
• Application(s):
  • Asset tracking
  • Barcode labelling
  • Circuit board labelling
  • Component and equipment labelling
  • Data and telecommunications labelling
  • Electrical labelling
  • Facility identification
  • General identification
  • Healthcare and Hospital labelling
  • Inventory and inspection labelling
  • Laboratory labelling
  • Lean and 5S labelling
  • Safety identification
  • Warehouse marking
  • Wire and cable labelling
• Colour Capability: Monocolour
• Max. Label Width (mm): 38.10 mm
• Print Technology: Thermal Transfer
• Recommended Usage per Day: 1000
• Resolution (dpi): 300 dpi
• Stand Alone Printing: Stand-alone & Peripheral

Dimensions
Size - Width (mm): 146.05 mm
Size - Height (mm): 95.25 mm
Size - Depth (mm): 254.00 mm
Weight (kg): 1.38 kg
Display Size: 71.12 mm
Minimum Label Height (mm): 5.99 mm
Dimensions (W x H x D): 146.05 mm (W) x 95.25 mm (H) x 254.00 mm (D)

Material Characteristics
Materials Supported: BradyGrip® Polyester; FreezerBondz™ Polyester; Heat-shrink Polyolefin; Metallised Polyester; Nylon Cloth; Polyester; Polyethylene Tag; Polypropylene; Reflective Tape; Repositionable Vinyl; Self-laminating Polyester; Self-laminating Vinyl; StainerBondz™ Polyester; Tamper-resistant Vinyl; Vinyl; Vinyl Cloth; Water Dissolvable Paper
Colour: Blue, Grey

Product Features
Battery mAh Rating: 1200 mAh
Auto Shut Off: 10 minutes, User Configurable
Battery Type: Rechargeable NiMH Battery
Battery Weight (metric): 250.000 g
Built-in Symbols: 480
Language Support: Bulgarian; Chinese (Traditional & Simplified); Croatian; Czech; Danish; Dutch; English (US); Estonian; Finnish; French; German; Hungarian; Italian; Japanese; Norwegian (Bokmål); Polish; Portuguese; Romanian; Russian; Slovak; Slovenian; Spanish (Mexico); Swedish; Turkish
Calibration: Automated through Smart Cell
Connectivity Options: USB
Custom Labels Available: No
Cutter Type: Single Hand Manual Actuate, Straight Cut, With label retention
Display Type: Colour LCD Screen, LCD backlit graphics display
How Is Battery Shipped: Shipped installed in equipment
Interface Type: Full QWERTY Keyboard, PC
Internal Memory Capacity: 512 MB RAM, 256 MB Flash
Barcode Symbologies: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Data Matrix, QR code (more via Brady WorkStation)
Keyboard Type: QWERTY
Operating Humidity Range: 20%-90% (non-condensing)
Operating Temperature: 4°C - 43°C
Stand Alone Printing: Stand-alone & Peripheral
Power Source: AC Adaptor, Rechargeable Battery
Power Supply Voltage: 110 - 240 V
Printing Wizards: 66 (Block, Breaker Box, DesiStrip, Faceplate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap, etc.)
Recharge Time: 4 hours
Shipped With Battery: Yes
Storage humidity: 10%-90% (non-condensing)
Storage Temperature: -18°C - 43°C
Charging Times: Charging over battery charger (0 - 100%) 4h

Printing Specifications
Print Technology: Thermal Transfer
Print Speed (mm/sec): 38.10 mm/s
Printing Functions: Auto Format; Banner; Date/Time Stamp; Fixed Length; Justification; List Function; Mirror; Multi-copy; Print Preview; Reverse; Rotate; Serialisation; Vertical
Colour Capability: Monocolour
Resolution (dpi): 300 dpi
Display Resolution: 320 x 240 pixels
Max. Label Width (mm): 38.10 mm
Max. Liner Width (mm): 45.72 mm
Recommended Usage per Day: 1000
Max. Print Width (mm): 36.58 mm
Max. Print Length (mm): 99.06 cm
Text Sizes (pt): 4 - 170 pt
Font Styles: Brady Alpine, Brady Fixed Width
Symbol Categories: Arrows; Datacom; Electrical; Exit; Fire Safety; First Aid; GHS/CLP; Greek; Home Electrical; HSID; International; ISO Signs; Laboratory; Mandatory; Miscellaneous; Packaging; PPE; Prohibition; Public Information; Safety; Warning; WHIMIS
Number of Stock Parts: 250+ standard parts
On Screen Indicators: Battery Life, Supply Remaining
Print Rotation: Yes
Min. Label Width (mm): 5.97 mm
Drop Test: Resistant to 1.2 metre drops
Programming Language: Brady Custom ZPL Emulation Software Solution, Brady Script Emulator for ZPL (accessory required)
Serialisation: Simple & Simultaneous & Single Advanced & Multiple Advanced
Smart Cell: Yes

Compatibility
Continuous vs Die Cut Labels: Continuous, Die-cut
Software Compatibility: Brady Workstation; Windows-based driver for 3rd party software use
B- Numbers supported (cartridges/media examples): B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-423, B-425, B-425A, B-427, B-428, B-430, B-432, B-461, B-481, B-482, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-581, B-584, B-595, B-7425, B-7641
Compatible Media series examples: M4-, M4C-, M5-, M5C-

Includes

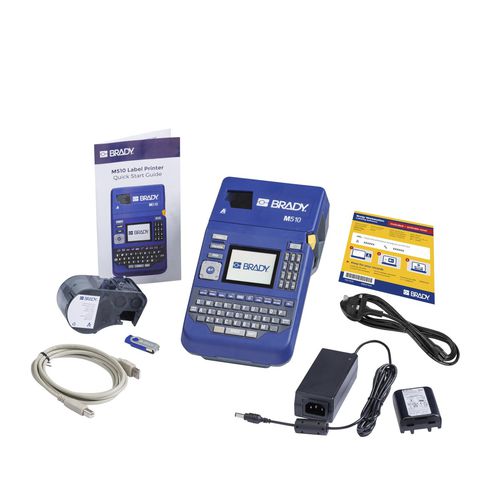

This M510 Printer ships in packaging with a rechargeable NiMH Battery Pack, an AC Adapter, B-595 Vinyl label Cartridge, a Quick start Guide, a USB Cable, a licence for Brady Workstation Software suites and a USB Flash Drive with Driver and User Manual.

Warranty
2 years
