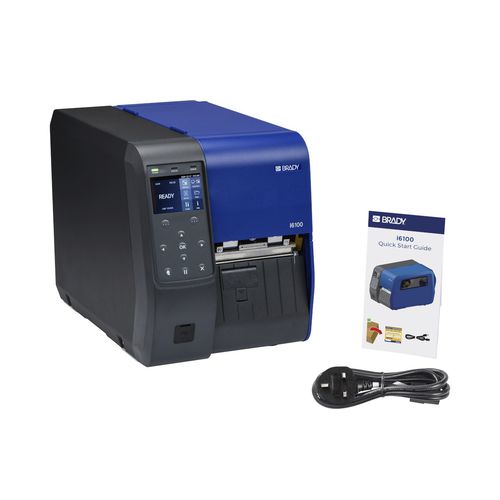

Direct thermal label applicator printer I6100-300-UK

thermal transferbarcode labelmonochrome

Overview
The i6100 industrial desktop label printer delivers precise direct-thermal and thermal-transfer printing for mid- to high-volume labelling tasks in industrial environments. Designed for continuous operation with a metal frame and multiple connectivity options, it supports a wide range of materials and barcode symbologies.

Key benefits

• Supports diverse media types for applications from electrical and cable labelling to inventory and laboratory identification
• Print speed up to 254 mm/s (recommended up to 4,000 labels/day)
• Industrial-grade construction with aluminum chassis for workshop and production use
• Local control via colour LCD and keypad for quick configuration changes
• Includes Brady Workstation Design & Print Essentials for label design and workflow integration

Key Features

• Print technologies: Direct Thermal, Thermal Transfer
• Resolution: 300 dpi
• Max. label width: 114.00 mm; Max. print width: 105.70 mm; Max. print length: 2.50 m
• Media handling: Continuous and die-cut labels; core diameter 76.2 mm; max roll diameter 203 mm
• Recommended daily output: 4,000 labels

Dimensions
Width: 269.00 mm
Height: 324.00 mm
Depth: 490.00 mm
Weight: 13.98 kg
Display size: 88.90 mm
Minimum label height: 4.75 mm

Material compatibility

• Supported materials include: Direct Thermal Paper; Polyester variants (FreezerBondz™, metallised, self-laminating); Vinyl and Vinyl Cloth; Polyimide; Nylon Cloth; Paper; Polyolefin; Tamper-evident and special-purpose laminates
• Printer housing colours: Blue, Grey

Product features & operation

• Battery: Internal lithium-manganese (shipped installed)
• Media sensors: Black mark, gap, notch, reflective, head open, ribbon end, see-through
• Connectivity: Ethernet, RS232, USB 2.0, USB Host
• Interface: Colour LCD with buttons; PC control
• Memory: 512 MB SDRAM, 512 MB Flash; Built-in ZPL emulator
• Language support: English, French, German, Spanish

Printing specifications

• Print speed: 254 mm/s
• Resolution: 300 dpi
• Colour capability: Monocolour
• Max. printer-compatible label thickness: 0.30 mm
• Min. label width: 4.00 mm

What's included & warranty

• Includes: i6100 printer (cardboard box), Brady Workstation Design & Print Essentials, quick-start guide, EU power plug
• Software package: Basic Design Suite (Brady Workstation included)
• Warranty: 2 years

Compliance & certifications

• Approvals: CE, FCC, UL
• RoHS: Compliant with 2011/65/EU (with exemptions)
• REACH: Contains an SVHC (REACH Candidate List date: 21 January 2025)
• Operating temperature: 5 °C to 40 °C; Storage temperature: -20 °C to 60 °C
