Laboratory labeler I5300-C-UK-BWS

high-speedelectricadhesive label

Product overview
The BradyPrinter i5300 is an industrial label printer for high-mix, high-volume labeling. It supports direct thermal and thermal transfer methods and ships with a Brady Workstation licence for targeted label suites.

Key benefits

• 300 dpi resolution for precise small-font and barcode printing
• No manual calibration required; no heat/speed adjustments needed for standard workflows
• Fast material changeovers (~20 seconds); supports 5.08 mm to 101.6 mm label widths
• Pause, resume and store print jobs in an adjustable, write-protected queue
• 178 mm colour touchscreen and built-in auto cutter for inline finishing
• All-metal frame designed for industrial environments

Key features

• Print resolution: 300 dpi (models available at 600 dpi)
• Max label/liner width: 107.95 mm; max print width: 101.98 mm
• Recommended throughput: up to 5,000 labels/day
• Connectivity: Ethernet, cabled, USB 2.0, USB Host
• Memory: 512 MB RAM; 195 MB IFFS Flash

Key characteristics
Article Number: 322891
Order Reference: i5300-C-UK-BWS
Total Qty per Pack: 1 Piece / Box
Minimum Order Quantity: 1
Applications: Asset tracking, barcode labelling, circuit board labelling, component and equipment labelling, data & telecommunications labelling, electrical labelling, facility identification, laboratory labelling, pipe and valve marking, solar panel labelling, wire and cable labelling
Quantity: 1
Brand: Brady®
Trade Name: BradyPrinter i5300
Ribbon Series: B30 Series
Country of Origin: Malaysia

Dimensions
Width: 284.48 mm
Height: 279.40 mm
Depth: 401.32 mm
Weight: 15.0 kg
Display size: 177.80 mm (178 mm)
Overall dimensions: 284.48 mm (W) x 279.40 mm (H) x 401.32 mm (D)

Material characteristics
Materials supported: Direct thermal paper; FreezerBondz™ polyester; heat-shrink polyolefin; high-temperature PVDF heat-shrink sleeve; magnetic polyester; metal-detectable polyester; metallic and metallised polyesters; non-metal polyester; polyester with polyester overlaminate; nylon cloth; paper; phosphorescent polyester; polyester variants; polyimide; polyolefin; polypropylene; polyvinyl fluoride; reflective tape; self-laminating polyester and vinyl; StainerBondz™ polyester; static dissipative polyester; tamper-evident metallised polyester; vinyl; vinyl cloth
Colour: Blue, Grey

Product features (detailed)

• Auto shut off: Yes
• Battery type: Coin/button cell (shipped installed when applicable)
• Display: Colour LCD touchscreen (1024 x 800)
• Cutter: Built-in auto cutter with cut modes (end of job, full cut, cut between labels)
• Supported barcode symbologies: Codabar (NW-7), Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2 of 5, MSI, UPC-A, Aztec, Data Matrix, PDF417, QR code
• Operating conditions: 10°C - 40°C; 10% - 85% RH (non-condensing)
• Operating systems: Windows® 7/8/10/11 and Windows Server 2012/2012 R2/2016

Printing specifications

• Print technology: Direct thermal; Thermal transfer
• Print speed: up to 254 mm/s
• Resolution: 300 dpi (600 dpi option available)
• Max roll outer diameter: 109.22 mm
• Text size range: 4 - 250 pt
• Min label width: 5.08 mm (min print width support from 6.35 mm)

Compatibility
Continuous, die-cut and custom labels supported
Software compatibility: Brady Workstation (included licence), Express Labels Mobile App, SDK, Windows driver for 3rd-party software
Supported consumables: B- series ribbons and label ranges (B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R- and many B- numbers)

What's included

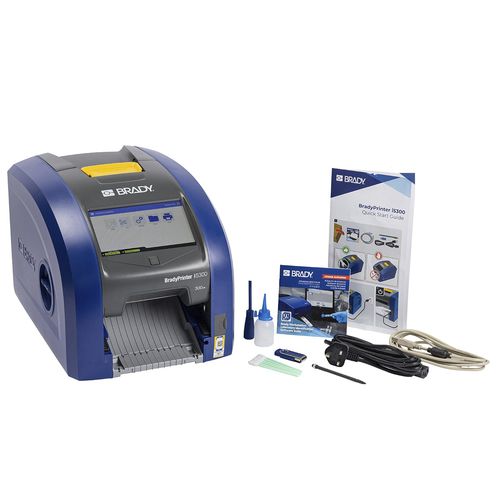

Printer in cardboard box with Brady Workstation licence (selected suite), power cable, USB cable, stylus, cleaning kit, QuickStart Guide, jump drive with how-to videos and third-party Windows driver
Warranty: 2 years

Compliance
UNSPSC: 45101519
RoHS: Compliant with 2011/65/EU (with exemptions)
REACH SVHC: Product contains an SVHC (candidate list date: 04 February 2026)
Approvals: CE, cULus, EAC, FCC, UKCA
