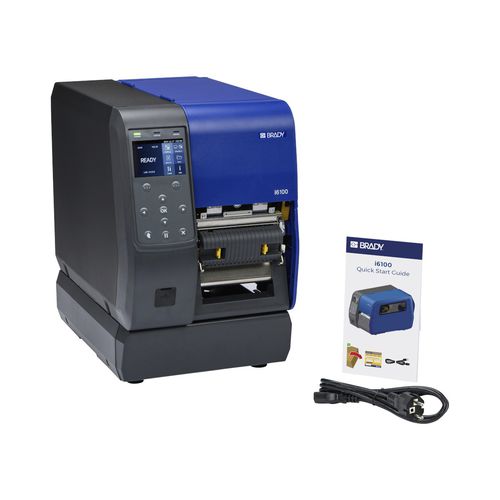

Direct thermal label applicator printer I6100-300-P-UK

thermal transferfor bar code labelsbarcode label

Overview
No matter the demands of your labelling jobs — from mid to high volume, or moderate- to high-performance printing — the reliable i6100 label printer delivers accurate thermal direct and thermal transfer printing with optional Peel & Present configuration for automated label peeling.

Key benefits

• Supports a wide range of label materials to cover general identification, electrical, wire & cable, laboratory and inventory labelling
• Peel configuration automatically peels labels from the liner for faster manual application
• High print speed of 254 mm/s supports up to 4,000 labels per day (recommended usage)
• Industrial-ready construction with aluminium chassis and user-accessible colour LCD and keypad
• Flexible connectivity and compatibility with Brady Workstation Design & Print Essentials software

Key features

• Print technologies: Direct Thermal, Thermal Transfer
• Resolution: 300 dpi
• Max. label width: 114.00 mm (max. print width: 105.70 mm)
• Print speed: 254 mm/s
• Recommended usage per day: 4000 labels
• Colour capability: Monocolour
• Media handling: Continuous and Die-cut labels; Peel & Present
• Interfaces: Ethernet, RS232, USB 2.0, USB Host

Additional product information

• Article Number: 324884
• Order Reference / Part Number: I6100-300-P-UK
• Total Quantity per Pack: 1 Piece(s) / Box
• Minimum Order Quantity: 1
• Includes: Brady Workstation Design & Print Essentials software, Quick-start Guide, UK power plug
• Warranty: 2 years
• Software Package: Basic Design Suite

Material & media support

• Materials supported: Direct Thermal Paper; FreezerBondz™ Polyester; Heat-shrink Polyolefin; Metallic; Non-metal Polyester; Metallised Polyester; Metallised Polyester with Polyester Overlaminate; Nylon Cloth; Paper; Polyester; Polyimide; Polyolefin; Repositionable Paper; Self-laminating Polyester; Self-laminating Vinyl; StainerBondz™ Polyester; Static Dissipative Polyester; Tamper-evident Metallised Polyester; Tamper-evident Polyester; Vinyl; Vinyl Cloth; Water Dissolvable Paper; Water-indicating Polyester/Paper Laminate
• Compatible media prefixes/series: 2HT-, 3HT-, APL-, DR-, DT-, HX-, LSZH-, PS-, THT-, THTEL-, XTHT-, ZH-

Compliance & regulatory

• UNSPSC: 45101519
• REACH SVHC Status: Part contains an SVHC (see candidate list)
• REACH Candidate List Date: 25 June 2025
• Approvals / Compliance: CE, FCC, UL
• Printer can be shipped to: multiple European countries and the United Kingdom (see seller for full list)

Technical specifications (selection)

• Type / Trade name: i6100 Label Printer
• Size (W x H x D): 269.00 mm x 324.00 mm x 490.00 mm
• Weight: 13.98 kg
• Core diameter: 76.20 mm
• Display size: 88.90 mm (colour LCD)
• Minimum label height: 4.75 mm
• Minimum label width: 4.00 mm
• Max. print width: 105.70 mm
• Max. print length: 2.50 m
• Max. roll outer diameter: 203.00 mm
• Maximum label thickness: 0.30 mm
• Memory: 512 MB SDRAM, 512 MB Flash
• Interfaces: Ethernet, RS232, USB 2.0, USB Host
• Power: AC Adaptor 100 - 240 V @ 50 - 60 Hz (internal non-removable lithium‑manganese battery installed)
• Media sensors: black mark, gap, head open, notch, reflective, ribbon end, see-through
• Operating temperature: 5°C to 40°C; storage: -20°C to 60°C
• Operating humidity: 10% - 85% RH non-condensing
• Print languages / programming: Built-in ZPL Emulator
• Barcode symbologies supported: wide set of 1D and 2D codes (Code 39, Code 128, EAN/UPC, GS1 DataBar, QR, Data Matrix, PDF417, Aztec, etc.)
• Hardware options: Auto cutter (accessory), Cleaning swabs, Peel & Present
