Thermal transfer label applicator printer BBP12-LAB Kit-UK

barcode labelcompactlaboratory

Description
The BBP®12 Label Printer packs a lot of punch into one compact tool with its high-speed printing, an extended list of labeling options and a simple, user-friendly design.

Benefits

• Gives versatility to print all basic label types from one machine - saving costs, reducing downtime and simplifying your labeling
• Over 800 varieties of labels, including external-feed bulk rolls and custom parts, for general identification, wire marking, asset tracking and more
• Specifically designed small-core media rolls and ribbons provide fast installation and reduce change-over time
• Centering ribbon spindle virtually eliminates ribbon wrinkle
• Compact size won’t clutter your workplace or bench
• Ships with a license for the Brady Workstation suite of your preference: Product & Wire Identification, Safety & Facility Identification, or Lab Identification, enabling easy creation of a wide range of labels and signs

Key Features

• Minimum Label Height (mm): 10.00 mm
• Colour Capability: Monocolour
• Max. Label Width (mm): 116.84 mm
• Max. Print Length (mm): 11.43 m
• Recommended Usage per Day: 1000
• Resolution (dpi): 300 dpi
• Connectivity Options: Ethernet, Serial, USB

Key Characteristics
Article Number: 198597
Order Reference: BBP12-LAB Kit-UK
Total Qty per Pack: 1 Piece(s) / Piece
Minimum Order Quantity: 1
Application(s): Healthcare and Hospital labelling, Laboratory labelling
Quantity: 1
Brand: Brady®
Trade Name: BBP®12
Ribbon Series: R4300, R4400, R4500, R4900, R6000HF, R6100, R6200, R6400, R6600
Country of Origin: China

Dimensions
Size - Width (mm): 202.95 mm
Size - Height (mm): 190.50 mm
Size - Depth (mm): 259.33 mm
Weight (kg): 2.3 kg
Core - Diameter (mm): 25.40 mm
Display Size: 58.42 mm
Minimum Label Height (mm): 10.00 mm
Dimensions: 202.95 mm (W) x 190.50 mm (H) x 259.33 mm (D)

Material Characteristics
Materials Supported: Direct Thermal Paper; FreezerBondz™ Polyester; Heat-shrink Polyolefin; Metallised Polyester; Metallised Polyester with Polyester Overlaminate; Nylon Cloth; Paper; Polyester; Polyester with Polyester Overlaminate; Polyimide; Polyolefin; Polypropylene; Polyvinylfluoride; Repositionable Paper; Self-laminating Polyester; Self-laminating Vinyl; StainerBondz™ Polyester; Tamper-resistant Metallised Vinyl; Tamper-resistant Vinyl; Vinyl; Vinyl Cloth; Water-indicating Polyester/Paper Laminate
Colour: Blue, Grey

Product Features
Auto Shut Off: No
Battery Type: Lithium-manganese Battery
Battery Weight (metric): 3.000
Media Sensor: Black Mark, Gap Sensor, Head Open, Ribbon End
Language Support: Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Kazakh, Lithuanian, Norwegian (Bokmål), Polish, Portuguese, Russian, Slovak, Spanish, Swedish, Turkish
Calibration: Manual
Connectivity Options: Ethernet, Serial, USB
Custom Labels Available: Yes
Cutter Type: None
Display Type: Colour LCD Screen
Hardware Options: Cleaning swabs; Cutter (factory installed option); External media holder; Peel & Present; Universal keyboard
Interface Type: PC
Internal Memory Capacity: 128 MB Flash, 64 MB SDRAM, SD Flash memory card up to 32 GB
Barcode Symbologies: China Post, Codabar (NW-7), Code 11, Code 128, GS1-128, Code 39, Code 93, Deutsche Post Identcode, EAN-13, EAN-8, GS1 DataBar (incl. stacked), Interleaved 2 of 5, ITF-14, MSI, POSTNET, Telepen, UPC-A, UPC-E, Aztec, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code, Code 49
Keyboard Type: Optional
Operating Humidity Range: 25%-85% (non-condensing)
Operating System: Windows® 7, Windows® 8, Windows® 10, Windows® 11
Operating Temperature: 5°C - 40°C
Stand Alone Printing: Peripheral
Power Source: AC Adaptor
Power Supply Voltage: 110 - 240 V
Print Preview Feature: No
Printing Wizards: No
Storage humidity: 10%-90% (non-condensing)
Storage Temperature: -40°C - 70°C

Printing Specifications
Print Technology: Thermal Transfer
Print Speed (mm/sec): 101.60 mm/s
Colour Capability: Monocolour
Resolution (dpi): 300 dpi
Display Resolution: 320 x 240 pixels
Max. Label Width (mm): 116.84 mm
Max. Liner Width (mm): 116.84 mm
Recommended Usage per Day: 1000
Max. Print Width (mm): 105.41 mm
Max. Print Length (mm): 11.43 m
Max. Roll Outer Diameter (mm): 127.00 mm
Maximum Label Thickness (mm): 0.19 mm
Hours of Operation: 8 hours/5 days
Print Rotation: 0°, 90°, 180°, 270°
Min. Label Width (mm): 6.00 mm
Programming Language: Built-in ZPL Emulator
Smart Cell: No

Compatibility
Continuous vs Die Cut Labels: Bulk, Continuous, Custom, Die-cut
Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
B- Numbers supported: B-423, B-424, B-425, B-427, B-428, B-430, B-433, B-449, B-457, B-472, B-483, B-486, B-488, B-490, B-498, B-499
Compatible Media: 2HX-, 3PS-, HX-, PS-, THT- (series prefixes)
Min. Label Length (mm): 9.91 mm

What’s Included

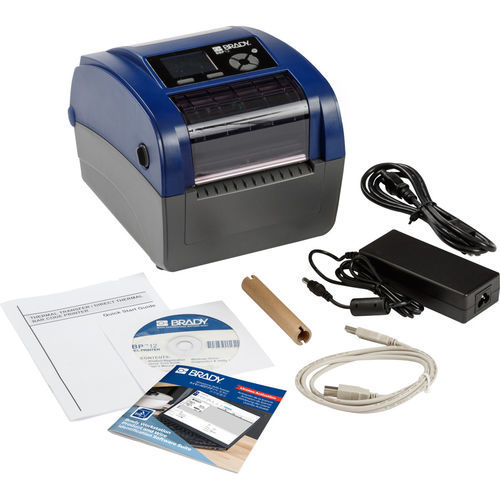

This BBP12 label printer comes in a cardboard box. It ships with an unwinder, USB Cable, power cord, product CD, Quick Start Guide, a license for Brady Workstation Software suites, sample media and ribbons (specified in kit contents). Warranty: 1 year

Compliance
UNSPSC: 45101519
RoHS Compliance Status: Compliant with RoHS Directive 2011/65/EU
REACH SVHC Status: Product does not contain SVHC substances
REACH Candidate List Date: 04 February 2026
Approvals/Compliance: CE, cUL, EAC, RoHS, UL
