Electric labeler BBP12-DATA Kit-UK

digitalCompact design

Overview
The Brady® BBP12 is a compact thermal-transfer label printer designed for datacom, wire and general identification tasks. It delivers 300 dpi resolution, fast print speeds and broad media compatibility in a benchtop footprint.

Key benefits

• One printer for multiple label types to reduce inventory and changeover time
• Support for over 800 label varieties, including external-feed bulk rolls and custom parts for wire marking, asset tracking and general ID
• Small-core media and ribbon design for quick installation and minimal downtime
• Centered ribbon spindle reduces ribbon wrinkles and waste
• Includes a Brady Workstation suite license to streamline label creation (Product & Wire ID, Safety & Facility ID or Lab ID)

Key Features

• Print technology: Thermal transfer (300 dpi)
• Colour capability: Monochrome
• Max. print width: 105.41 mm (max. label width 116.84 mm)
• Recommended usage: ~1000 labels/day
• Connectivity: Ethernet, Serial, USB
• Stand-alone printing: Peripheral (requires PC/app)

Specifications (selected)
Article Number: 198589
Order Reference: BBP12-DATA Kit-UK
Brand: Brady®
Ribbon series: R4300, R4400, R4500, R4900, R6000HF, R6100, R6200, R6400, R6600
Country of origin: China

Dimensions
Dimensions (W x H x D): 202.95 mm x 190.50 mm x 259.33 mm
Weight: 2.3 kg
Display size: 58.42 mm
Core diameter: 25.40 mm

Materials supported

• Direct thermal paper, paper, repositionable paper
• Polyester (including FreezerBondz™, StainerBondz™, self-laminating), metallised polyester
• Polyimide, polyolefin (including heat-shrink), polypropylene, vinyl, nylon cloth

Product features
Media sensor: Black mark, gap sensor, head open, ribbon end
Display: Colour LCD (320 x 240 px)
Memory: 128 MB Flash, 64 MB SDRAM, SD up to 32 GB
Operating temp.: 5°C - 40°C
Power: AC adaptor 110 - 240 V

Printing specifications
Print speed: 101.6 mm/s
Resolution: 300 dpi
Max. print length: 11.43 m
Max. roll outer diameter: 127 mm
Min. label width: 6.00 mm
Programming language: Built-in ZPL emulator

Compatibility & included items
Software compatibility: Brady Workstation, Windows driver for 3rd-party software
Supported B-numbers: B-423, B-424, B-425, B-427, B-428, B-430, B-433, B-449, B-457, B-472, B-483, B-486, B-488, B-490, B-498, B-499

What's included

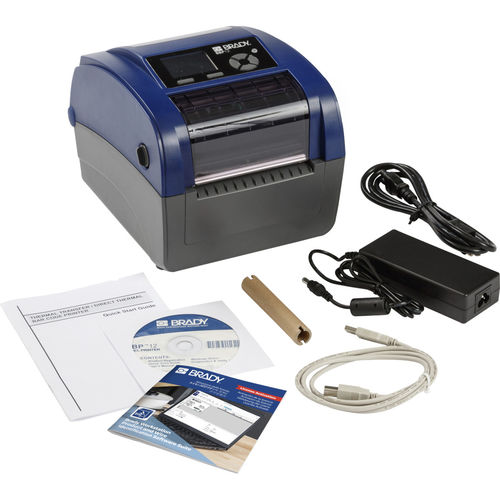

This unit ships with: unwinder, USB cable, power cord, product CD, Quick Start Guide, Brady Workstation license, sample media (BPT-611-499, THT-75-427-3, BPT-5-8423-2.5) and sample ribbons (R-4900 65MMX70M /O, R-7950 65MMX70M /O, R6000HF 110MMX70M /O). Warranty: 1 year

Compliance
UNSPSC: 45101519
Certifications: CE, cUL, EAC, RoHS, UL
RoHS: Compliant with 2011/65/EU (with exemptions)
REACH SVHC: Part contains an SVHC (Candidate List date: 04 February 2026)

Technical overview

• Model: BBP®12
• Resolution: 300 dpi
• Print speed: 101.6 mm/s
• Max. print width: 105.41 mm
• Max. roll diameter: 127 mm (core 25.4 mm)
• Memory: 128 MB Flash / 64 MB SDRAM / SD up to 32 GB
• Interfaces: Ethernet, Serial, USB
• Power: AC adaptor 110-240 V
• Weight / Dimensions: 2.3 kg / 202.95 x 190.50 x 259.33 mm
