CD labeler BBP12-DATA Kit-UK

electricbarcode labelCompact design

Product overview
The BBP®12 label printer is a compact thermal-transfer device designed for data and telecommunications labelling. It provides 300 dpi resolution, fast print speeds and compatibility with a broad range of materials. A Brady Workstation software license is included to simplify label creation.

Main benefits

• Single device to print a wide range of basic labels, reducing the need for multiple printers.
• Support for over 800 label types including external-feed bulk rolls and custom parts for wire marking, asset tracking and general identification.
• Small-core media rolls and ribbons speed up loading and minimise changeover time.
• Centering ribbon spindle reduces ribbon wrinkling and print defects.
• Compact footprint suitable for workbenches and constrained spaces.

Key features

• Print technology: Thermal transfer
• Resolution: 300 dpi
• Max. print width: 105.41 mm
• Max. label width: 116.84 mm
• Print speed: 101.60 mm/s
• Stand-alone printing: Peripheral (requires PC/app)
• Connectivity: Ethernet, Serial, USB
• Display: Colour LCD (58.42 mm)
• Memory: 128 MB Flash, 64 MB SDRAM, SD up to 32 GB
• Supported materials: wide range (paper, polyester variants, polyimide, polyolefin, polypropylene, vinyl, nylon, freezer-grade films, etc.)
• Barcode symbologies: Code 128, GS1-128, Code 39, EAN-13, QR code, PDF417, DataMatrix, Aztec, and more
• Recommended usage: ~1000 labels/day

Selected specifications

• Article Number: 198589
• Order reference: BBP12-DATA Kit-EU
• Dimensions (W x H x D): 202.95 mm x 190.50 mm x 259.33 mm
• Weight: 2.3 kg
• Core diameter: 25.40 mm
• Min. label height: 9.91–10.00 mm (depending on configuration)
• Max. roll outer diameter: 127.00 mm
• Max. label thickness: 0.19 mm
• Power: AC adapter 110–240 V
• Calibration: Manual

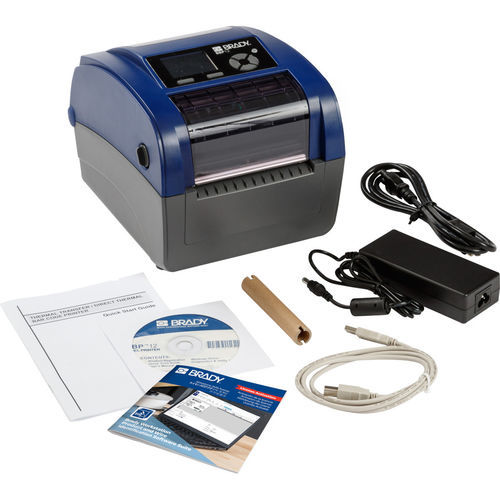

Included in the kit

• Unwinder / external media holder
• USB cable and power cord
• Product CD and Quick Start Guide
• Brady Workstation software license (selected suite)
• Sample media and ribbons as listed with the kit

Compliance & warranty

• Warranty: 1 year
• Approvals: CE, cUL, EAC, RoHS, UL
