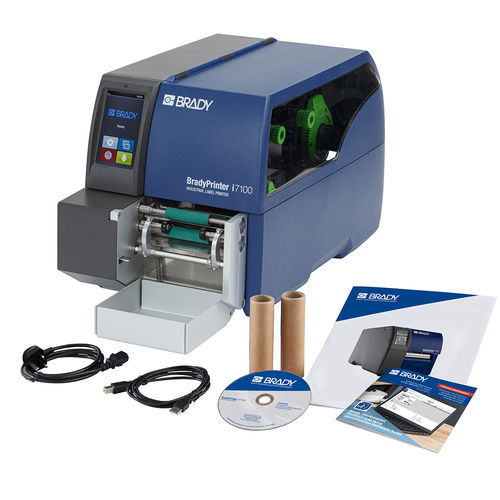

Thermal transfer label applicator printer I7100300P-UKBWSVLA

for vialsfor plasticsdesktop

Description
The BradyPrinter i7100 is an industrial bench-top thermal transfer printer designed for high-volume, diverse-media labelling in industrial and laboratory environments. It supports sleeves, tags, labels, tapes and cable markers and is supplied with a vial label applicator and a Brady Workstation (BWS) software license.

Main benefits

• Prints reliably on a wide range of materials including difficult-to-print media.
• Included vial label applicator prints and applies labels to vials/tubes to speed sample handling.
• Peel configuration automatically removes labels from the liner for immediate application.
• Capable of ultra-precise printing on very small labels (from 4 mm).
• Designed for continuous daily throughput (recommended up to 7000 labels/day).
• Colour touchscreen for fast local configuration and operation.

Key features

• Print technology: Thermal transfer
• Resolution: 300 dpi
• Print speed: up to 150 mm/s
• Max. label width: 56 mm (max liner width 60 mm)
• Max. print length: 102 mm
• Standalone and peripheral operation modes
• Supports continuous, die-cut and custom media formats

Specifications — key data

• Article Number: 307660
• Order/Part Number: I7100300P-UKBWSVLA
• Recommended usage per day: 7000 labels
• Standards/approvals: CE, FCC class A, UL, CCC
• Country of origin: Germany

Dimensions

• Width: 252 mm
• Height: 288 mm
• Depth: 520 mm
• Weight: 12.00 kg
• Minimum label height supported: 10–12 mm (depending on media)

Material characteristics
Supported media include a wide range such as heat-shrink polyolefin sleeves, FreezerBondz™ polyester, PVDF shrink sleeves, metallic and metallised polyester, polyester with overlaminate, nylon cloth, paper, polyimide, polypropylene, vinyl, self-laminating polyester/vinyl and various tamper-evident and specialty films.

Product features

• Battery type (accessory): Lithium‑manganese
• Languages supported: multiple European and international languages
• Connectivity: Ethernet, USB, Serial, I/O; Bluetooth and Wi‑Fi optional
• Display: Colour touchscreen
• Memory: 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB

Printing specifications

• Print technology: Thermal transfer
• Resolution: 300 dpi
• Print speed: up to 150 mm/s
• Max. label width: 56 mm
• Max. roll outer diameter: 205 mm
• Max. label thickness: 1.00 mm
• Minimum label width: 10 mm
• Programming languages: abc Basic, Database Connector, Jscript, SAP integration, ZPL emulator

Compatibility

• Software: Brady Workstation; Windows drivers for third-party software
• Media compatibility: Supports THT- series and multiple Brady media types

What’s included

• Printer packed in cardboard box with vial label applicator, UK/EU power cord (region-specific), 2 empty ribbon cores, USB cable, product CD with drivers and manuals, printed user manual (English) and a license for Brady Workstation suites.
• Warranty: 2 years

Compliance

• UNSPSC: 45101519
• RoHS: Compliant with 2011/65/EU (with exemptions)
• REACH: Candidate list information provided on product page

Technical specifications (summary)

• Model: BradyPrinter i7100
• Printing technology: Thermal transfer
• Resolution: 300 dpi
• Print speed: 150 mm/s
• Max. print width: 56 mm
• Recommended throughput: up to 7000 labels/day
• Dimensions (W×H×D): 252 × 288 × 520 mm
• Weight: 12.00 kg
