Thermal transfer printer BBP12-UK-U-C-BWS

labelbarcode labelfor labels

Description
The BBP®12 label printer delivers high performance in a compact footprint thanks to fast print speeds, broad media support and a simple, user-friendly design.

Main advantages

• Prints a wide range of standard labels on a single device, reducing costs and simplifying labeling workflows.
• Compatible with over 800 label varieties including bulk-fed rolls and custom materials for general identification, wire and cable marking, asset tracking and more.
• Small-core ribbons and media designed for fast loading and quicker consumable changes.
• Ribbon-centering spindle reduces ribbon wrinkling.
• Compact size suitable for workbenches and office environments.
• Includes a Brady Workstation suite license (choice depending on offer) to simplify creation of labels and signage.

Key features

• Applications: Barcode labeling, PCB labeling, component and equipment labeling, general identification, asset tracking.
• Media types: Bulk-fed, custom, continuous, die-cut.
• Standalone printing: Device (standalone mode available).
• Color capability: Monochrome.
• Max label width: 116.84 mm.
• Resolution: 300 dpi.
• Print technology: Thermal transfer.
• Recommended daily volume: 1000 (estimate).

Specifications - product information
Minimum order quantity: 1
Item number: 322908
Order reference: BBP12-EU-U-C-BWS
Total quantity per package: 1 Piece(s) / Piece
Applications: Barcode labeling, PCB labeling, component and equipment labeling, general identification, asset tracking
Quantity: 1
Brand: Brady®
Trade name: BBP®12
Ribbon series: R4300, R4400, R4500, R4900, R6000HF, R6100, R6200, R6400, R6600
Country of origin: China

Dimensions
Width (mm): 202.95 mm
Height (mm): 190.50 mm
Depth (mm): 259.33 mm
Weight (kg): 2.3 kg
Core diameter (mm): 25.40 mm
Display size: 58.42 mm
Min. label height (mm): 10.00 mm
Dimensions (W x H x D): 202.95 mm x 190.50 mm x 259.33 mm

Material properties
Supported materials: Paper, Removable paper, Direct thermal paper, Polyester (including self-laminating and various formulations such as FreezerBondz™, StainerBondz™), Metallized polyester, Polyester/paper water-indicator laminates, Polyvinyl fluoride, Polyimide, Polyolefin (including shrink), Polypropylene, Nylon fabric, Vinyl (including tamper-evident and self-laminating), Polyolefin shrink, etc.
Available colors (housing): Blue, Grey

Product functionalities
Auto power-off: No
Battery type: Coin/button cell (shipped installed)
Battery weight: 3.000
Media sensors: Cover open, Gap/space, Ribbon end, Black mark
Available languages (UI): German, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Kazakh, Lithuanian, Dutch, Norwegian, Polish, Portuguese, Russian, Slovak, Swedish, Czech, Turkish
Calibration: Manual (manual calibration required for optimal performance)
Connectivity options: Serial, Ethernet, USB
Custom labels available: Yes
Cutter type: Between labels or end-of-job; Automatic cutter; No label retention
Display type: Color LCD
Hardware options: Peel & present, Universal keyboard, Cleaning swabs, Factory-installed cutter, External media holder
Battery delivery: Shipped installed in unit
Interface type: PC
Internal memory: Flash 128 MB, SDRAM 64 MB, SD flash up to 32 GB
Supported barcode symbologies: China Post, Codabar (NW-7), Code 11, Code 128, GS1-128, Code 39, Code 93, Deutsche Post Identcode, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Stacked Omnidirectional, Interleaved 2 of 5, ITF-14, MSI, POSTNET, Telepen, UPC-A, UPC-E, Aztec, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code, Code 49
Type of keyboard: None
Label dimensions: Max width: 100 mm, Min width: 10 mm, Min height: 10 mm
Operating humidity range: 25%-85% (non-condensing)
Compatible systems: Windows® 7, Windows® 8, Windows® 10, Windows® 11
Operating temperature: 5°C - 40°C
Standalone printing: Device (standalone mode)
Power supply: AC adapter
Supply voltage: 110 - 240 V
Preview before print: No
Shipped with battery: Yes
Storage humidity range: 10%-90% (non-condensing)
Storage temperature range: -40°C - 70°C

Printing specifications
Print technology: Thermal transfer
Print speed (mm/s): 101.60 mm/s
Color capacity: Monochrome
Resolution (dpi): 300 dpi
Display resolution: 320 x 240 pixels
Max label width (mm): 116.84 mm
Max print width (mm): 116.84 mm (technical), effective print width: 105.41 mm
Max print length (mm): 11.43 m
Max roll outer diameter (mm): 127.00 mm
Max label thickness (mm): 0.19 mm
Print rotation: 0°, 90°, 180°, 270°
Min label width (mm): 6.00 mm
Programming language: Built-in ZPL emulator

Compatibility
Media types: Bulk-fed, Custom, Continuous, Die-cut
Software compatibility: Brady Workstation, Windows driver for third-party software
Supported B references: B-423, B-424, B-425, B-427, B-428, B-430, B-433, B-449, B-457, B-472, B-483, B-486, B-488, B-490, B-498, B-499
Compatible media formats (prefixes): 2HX-, 3PS-, HX-, PS-, THT-

What is included

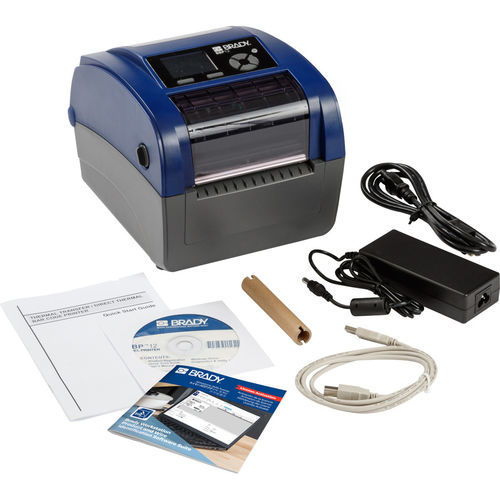

The BBP12 with factory-installed cutter is supplied in its box with roll holder, USB cable, power cable, product CD, quick start guide and a Brady Workstation software suite license. Warranty: 1 year.

Compliance
UNSPSC: 45101519
RoHS: Compliant with RoHS Directive 2011/65/EU
REACH SVHC Status: Product does not contain SVHCs (candidate list status as of provided date)
Approvals/Certifications: CE, cUL, EAC, RoHS, UL

Characteristics / technical specifications

• Commercial model: BBP®12
• Technology: Thermal transfer, 300 dpi resolution
• Print speed: 101.6 mm/s
• Max print width: ~105–116.84 mm (technical vs. effective)
• Consumable support: Rolls up to Ø 127 mm, core 25.40 mm
• Dimensions (W x H x D): 202.95 x 190.50 x 259.33 mm
• Weight: 2.3 kg
• Connectivity: Serial, Ethernet, USB
• Operation modes: Standalone (device) and PC-connected
• Supported materials: Wide range including paper, polyester, vinyl, polyolefin, polyimide, etc.
• Barcode symbologies supported: Extensive (Code 128, QR, PDF417, EAN, GS1, etc.)
