Pharmaceutical industry labeler M610-QY-UK-QF KIT

high-speedelectricbarcode label

Product overview
Enable high-speed cable and asset interventions with a portable, out-of-the-box HF labeling and RFID reading solution designed for field use and fast on-site identification.

Main benefits

• Give any wire, cable or asset a unique digital identity quickly with a 100% portable HF solution.
• The QuickFlag label with embedded HF chip links extended data to cabled network infrastructures and assets; access documentation on-site and capture intervention details with a mobile device.
• Easy-to-apply cable flag label with a large printable area for clear on-site marking.
• Express Labels design software and the RFID encoding & reading Toolbox integrate with the HH85 RFID reader for seamless workflows.
• RFID Toolbox supports encoding and data export for further analysis and system integration.

Key features

• Dimensions: 106.42 mm (W) x 328.42 mm (H)
• Applications: Wire & cable labelling; Data & telecommunications labelling; Electrical labelling; Facility identification; Asset tracking; Safety and general identification
• Battery: Rechargeable lithium-ion, 3200 mAh (shipped in box, not installed)
• Connectivity: Bluetooth® 5 Low Energy (class II); Stand-alone use; USB 2.0
• Print technology: Thermal transfer; Resolution: 300 dpi; Print speed: 50.80 mm/s; Max print width: 50.80 mm; Max print length: 1016.00 mm; Min label height: 5.99 mm
• Includes HH85 RFID reader compatibility; supports many media types and barcode symbologies (Code128, Code39, QR, Data Matrix, EAN, UPC, etc.).

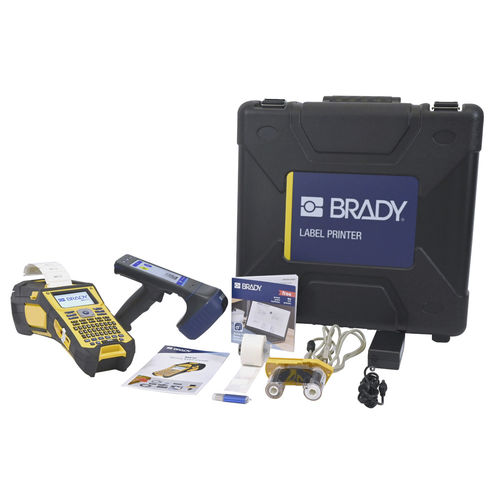

Included in the kit

• M610 label printer kit (QWERTY UK)
• HH85 RFID reader
• Roll of M6-218-483-NFC labels
• M61-R6010 ribbon
• RFID encoding Toolbox software & Express Labels app (downloadable)

Technical specifications (selected)

• Article Number: 321840
• Order Reference: M610-QY-UK-QF KIT
• Total Qty per Pack: 1 Piece / Kit
• Minimum Order Quantity: 1
• Brand: Brady®
• Country of Origin: Finland
• Warranty: 2 years
• Weight: 2.45 kg
• Display size: 71.12 mm; Display resolution: 320 x 240 px
• Internal memory: variants 512 MB RAM/256 MB Flash or 2 GB RAM/16 GB Flash; MicroSD slot for SDXC
• Operating temperature: -18°C to 46°C; Humidity range: 10%–90% non-condensing
• Durability: Drop resistant to 1.2 m; MIL-STD-810G shock resistant
• Compliance examples: ANATEL, cUL, FCC, IC/ISED, IFETEL/NOM, RCM, UL, UL MEX; RoHS compliant; REACH noted (SVHC mention)
