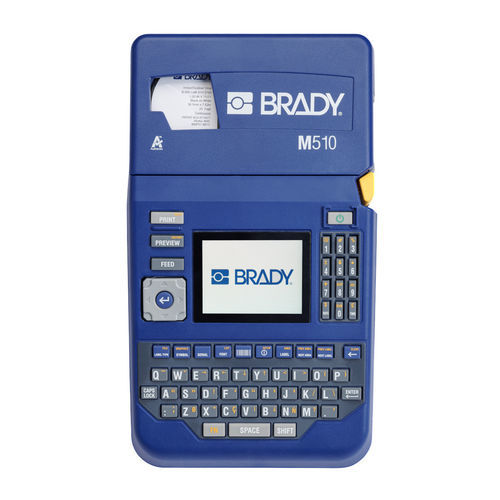

Thermal transfer label applicator printer M510-KIT-UK

barcode labelmedicalmonochrome

Product Overview
The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you're in a lab, field or facility, this printer works as hard as you do.

Key Benefits

• Create large 38.10 mm labels with edge-to-edge printing and a wide range of text sizes
• Print up to 38.10 mm per second to get work done faster
• Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
• Enter data with more accuracy using an intuitive full QWERTY keyboard, a separate numeric keypad or a PC
• Backlit full-colour LCD graphics display for easier labelling in low-lit areas
• Durably designed to withstand 1.2 m drops
• Ships with Brady Workstation Basic Design suite
• High-capacity Li-Ion battery prints up to 4,400 labels on a single charge (with high-capacity battery)

Key Features

• Continuous vs Die Cut Labels: Continuous, Die-cut
• Application(s): Asset tracking; Barcode labelling; Circuit board labelling; Component and equipment labelling; Data and telecommunications labelling; Electrical labelling; Facility identification; General identification; Healthcare and hospital labelling; Inventory and inspection labelling; Laboratory labelling; Lean and 5S labelling; Safety identification; Warehouse marking; Wire and cable labelling
• Colour capability: Monocolour
• Max. label width: 38.10 mm
• Print technology: Thermal Transfer
• Recommended usage per day: 1000 labels
• Resolution: 300 dpi
• Stand-alone printing: Stand-alone & Peripheral

Caractéristiques / spécifications techniques

• Article Number: 322726
• Order Reference / Part Number: M510-KIT-UK
• Total quantity per pack: 1 Kit / Box
• Minimum order quantity: 1
• Brand: Brady®
• Trade name / Model: M510
• Country of origin: Malaysia
• Dimensions (W x H x D): 146.05 mm x 95.25 mm x 254.00 mm
• Size - Width (mm): 146.05 mm
• Size - Height (mm): 95.25 mm
• Size - Depth (mm): 254.00 mm
• Weight: 1.38 kg
• Display size: 71.12 mm
• Minimum label height: 5.99 mm
• Max. label width: 38.10 mm
• Max. liner width: 45.72 mm
• Min. label width: 5.97 mm
• Max. print width: 36.58 mm
• Max. print length: 99.06 cm
• Print speed: 38.10 mm/s
• Print resolution: 300 dpi
• Print technology: Thermal Transfer
• Printing functions: Auto Format, Banner, Date/Time Stamp, Fixed Length, Justification, List Function, Mirror, Multi-copy, Print Preview, Reverse, Rotate, Serialisation, Vertical
• Display resolution: 320 x 240 pixels
• Internal memory / capacity: 512 MB RAM, 256 MB Flash
• Keyboard type / Interface: Full QWERTY Keyboard, numeric keypad; PC connectivity
• Connectivity options: USB
• Power source: AC Adaptor, Rechargeable Battery
• Power supply voltage: 110 - 240 V
• Battery type: Rechargeable Lithium-ion battery (included with kit)
• Battery mAh rating: 2700 mAh
• Battery weight: 250 g (metric)
• Recharge time: 4 hours (0 - 100% via charger)
• How battery is shipped: Shipped in box, not installed
• Auto shut off: 10 minutes, user configurable
• Built-in symbols: 480
• Language support: Bulgarian; Chinese (Traditional & Simplified); Croatian; Czech; Danish; Dutch; English (US); Estonian; Finnish; French; German; Hungarian; Italian; Japanese; Norwegian (Bokmål); Polish; Portuguese; Romanian; Russian; Slovak; Slovenian; Spanish (Mexico); Swedish; Turkish
• Calibration: Automated through Smart Cell
• Stand-alone printing mode: Stand-alone & Peripheral
• On-screen indicators: Battery life, supply remaining
• Drop resistance: Resistant to 1.2 metre drops
• Operating temperature: 4°C - 43°C
• Operating humidity: 20% - 90% (non-condensing)
• Storage temperature: -18°C - 43°C
• Storage humidity: 10% - 90% (non-condensing)
• Cutter type: Single hand manual actuate, straight cut, with label retention
• Display type: Colour LCD screen, backlit graphics display
• Barcode symbologies (examples): Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Data Matrix, QR code (more via Brady Workstation)
• Number of stock label parts supported: 250+ standard parts
• Programming / emulation: Brady Custom ZPL emulation solution; Brady Script emulator for ZPL (accessory required)
• Serialisation: Simple & simultaneous; single advanced & multiple advanced
• Smart Cell: Yes
• Compatible media series / prefixes: M4-, M4C-, M5-, M5C- (wide range of BradyGrip polyester, FreezerBondz polyester, heat-shrink polyolefin, metallised polyester, nylon cloth, polypropylene, vinyl variants, water-dissolvable paper, etc.)
• Compatible software: Brady Workstation; Windows driver for third-party software
• Recommended throughput estimate: 1000 labels/day
• Includes in the kit: Hard case; rechargeable Li-ion battery pack; AC adapter; B-595 vinyl label cartridge; Quick Start Guide; magnet; utility hook; USB cable; Brady Workstation Basic Design software suite (on USB flash drive with driver and user manual)
• Warranty: 2 years
• Compliance / approvals: CE, FCC, UKCA; RoHS compliant (2011/65/EU with exemptions); REACH SVHC present (candidate list date indicated)
