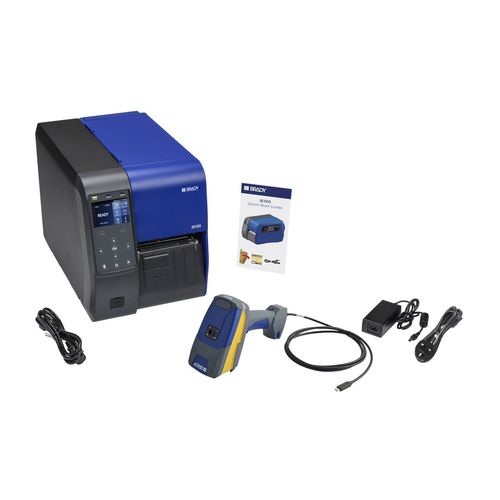

Direct thermal printer I6100-V2200-KIT-UK

thermal transferfor labelslabel

Product overview
The i6100 industrial label printer delivers reliable, high-accuracy printing for mid-to-high volume label production. Designed for industrial environments, it supports both direct thermal and thermal transfer workflows and ships with a V2200 barcode reader.

Key benefits

• Supports a wide range of media for applications from general identification to laboratory, wire/cable and electrical labelling
• 300 dpi resolution and print speed up to 254 mm/s for up to 4,000 labels/day recommended
• Robust aluminium frame for continuous industrial use
• Colour LCD and keypad for quick local configuration
• Includes Brady Workstation Design & Print Essentials and V2200 scanner for consistent barcode capture
• Advanced Cortex Decoder and Dual-Field Optics improve reading of small, shiny or dense barcodes

Key features

• Print technology: Direct Thermal and Thermal Transfer
• Resolution: 300 dpi
• Max print speed: 254 mm/s
• Max print width: 105.70 mm (max media width 114.00 mm)
• Recommended usage: up to 4,000 labels/day
• Connectivity: Ethernet, RS232, USB 2.0, USB Host
• Memory: 512 MB SDRAM, 512 MB Flash

Technical specifications

• Brand: Brady®
• Model / Part number: i6100 / I6100-V2200-KIT-EU
• Article number: 324889
• Dimensions (W x H x D): 269 x 324 x 490 mm
• Weight: 13.98 kg
• Display: 88.90 mm colour LCD
• Min label height: 4.75 mm; Min label width: 4.00 mm; Max label thickness: 0.30 mm
• Supported materials: paper, polyester variants, polyimide, polyolefin, nylon cloth, vinyl, metallic and specialty media (see datasheet)
• Supported barcode symbologies: common 1D and 2D (Code 39, Code 128, EAN, UPC, QR, Data Matrix, PDF417, Aztec, etc.)
• Power: AC adaptor 100–240 V 50–60 Hz; internal non-removable lithium-manganese battery (shipped installed)
• Operating temperature / humidity: 5°C–40°C; 10%–85% RH non-condensing
• Included: Brady Workstation Design & Print Essentials, quick-start guide, EU power plug, V2200 barcode reader and 2 m USB-A cable
• Compliance: CE, FCC, UL; RoHS compliant; REACH: contains SVHC (see documents)
• Warranty: 2 years
