Traceability RFID reader M610-QY-UK-T&T KIT

USBhandheld

Overview
This portable, ready-to-use RFID identification and asset tracking solution enables very fast asset tracking. The kit combines an M610 label printer, an HH85 RFID reader, a roll of labels M6-221-423-UHF, a ribbon M61-R6010, the RFID encoding toolbox and the Express Labels app (downloadable on the HH85 reader).

Benefits

• Assigns a unique digital identity to each asset easily with a 100% portable RFID solution ready to use.
• Versatile polyester label applicable to many surfaces for a wide range of applications.
• Suitable for environments where equipment and tools are mobile (AV, datacom, manufacturing, warehousing, laboratories, construction, etc.).
• Software integration: Express Labels and the RFID encoding/reading toolbox interoperate with the HH85 reader for encoding and data export.

Main features

• Applications: Electrical labeling, Telecom/datacom labeling, Facility identification, Security identification, General identification, Asset tracking.

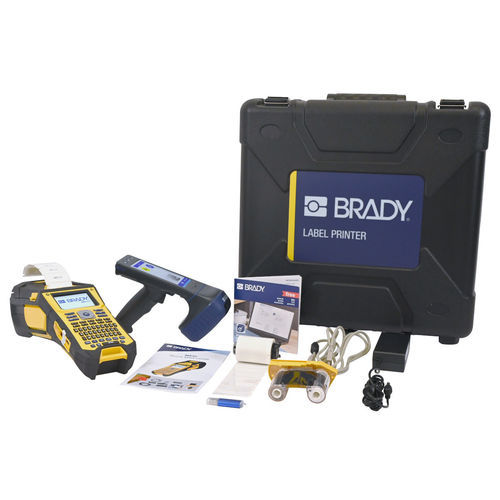

• Kit contents: M610 label printer, HH85 RFID reader, roll of labels M6-221-423-UHF, ribbon M61-R6010. RFID encoding toolbox and Express Labels app downloadable on the HH85 reader.
• Connectivity options: Bluetooth® 5 Low Energy (Class II), USB 2.0, standalone use.
• Battery type: rechargeable lithium-ion battery (3200 mAh).
• Dimensions (L x H): 106.42 mm x 328.42 mm.

Included / Warranty

• The kit includes the M610 label printer, the HH85 RFID reader, one roll of labels M6-221-423-UHF and one ribbon M61-R6010.
• Warranty: 2 years.

Technical characteristics / specifications

• Minimum order quantity: 1
• Site article number: 321832
• Order reference shown: M610-AZ-T&T KIT
• Total quantity per package: 1 Piece(s) / Kit
• Brand: Brady®
• Country of origin: Finland
• Dimensions - Width: 106.42 mm
• Dimensions - Height: 328.42 mm
• Weight: 2.45 kg
• Screen size: 71.12 mm
• Minimum label height: 5.99 mm
• Supported materials (examples): high-temperature heat-shrink polyvinylidene fluoride sleeves, paper, polyester (various types including tamper-evident, metallic, FreezerBondz™, StainerBondz™), polyolefin, polyimide, polypropylene, vinyl (several variants), nylon fabric, reflective tape, etc.
• Consumable colors visible: Yellow, Gray
• Battery capacity value: 3200 mAh (rechargeable lithium-ion battery)
• Battery weight: 205 g (value provided)
• Recharge time: 4 hours (specified for charging via USB-C connector)
• Auto power-off: user configurable
• Calibration: automated via Smart Cell technology
• Built-in symbols: 480
• Interface languages available: German, English (US), Arabic, Bulgarian, Chinese (traditional & simplified), Korean, Croatian, Danish, Spanish, Estonian, Finnish, French, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Czech, Turkish.
• Printing technology: thermal transfer
• Print speed: 50.80 mm/s
• Print color: monochrome
• Print resolution: 300 dpi
• Display resolution: 320 x 240 pixels
• Maximum label/print width: 50.80 mm
• Maximum print length: 1016.00 mm
• Minimum label width (indicated elsewhere): 6.40 mm
• Font styles: Brady Fixed Width
• Symbol categories: Warning, Packaging, Datacom, Electrical, Laboratory, Mandatory, ISO pictograms, WHMIS/GHS, Fire safety, etc.
• On-screen indicators: battery life, Bluetooth status, consumable identification and label reference, error message, remaining consumable quantity, remaining ribbon quantity
• Print rotation: yes
• Drop/test ruggedness: resistant to drops from 1.2 m; compliant with military shock standards (MIL-STD-810G)
• Serialization: multiple and linked
• Electronic chip: yes
• Operation modes: standalone (printing without PC) and connected
• Power: rechargeable battery (supplied in box, not installed)
• Memory and storage capacity: 512 MB RAM, 256 MB Flash; 2 GB RAM, 16 GB Flash; MicroSD slot for SDXC cards (values shown on sheet)
• Supported barcode symbologies: Code 128, Code 39, Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, EAN-13, QR code, Data Matrix, further via Brady Workstation
• Software compatibility: Brady Workstation, Express Labels Mobile App, Windows driver for third-party software
• Supported phones/tablets: Android OS 6+, iPhone 5S or newer running iOS 10+
• Compatible consumable references (prefixes): BM-, BMC-, M6-, M6C- (BM-/M6- range etc.)
• Supported formats (consumables): bulk-packaged consumables, custom consumables, continuous, die-cut
• Compliance / approvals (examples): ANATEL, CofC, cUL, FCC, IC/ISED, IFETEL/NOM, RCM, UL, UL MEX; RoHS and REACH status indicated on product sheet.
