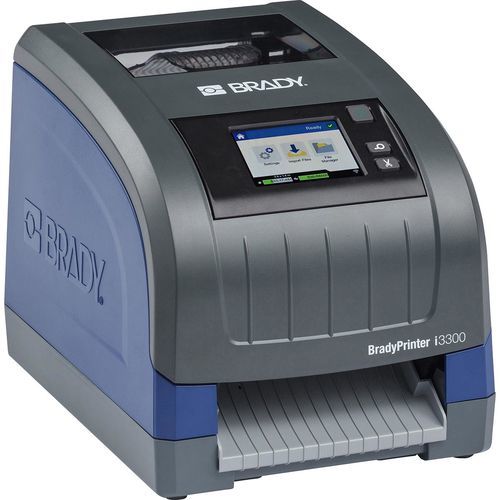

Thermal transfer printer I3300-300-C-UK

for labelsbarcode labelwith touch screen

Overview
The BradyPrinter i3300 is a mid-volume industrial thermal-transfer label printer designed for facility-wide identification: wires, panels, safety, asset and general labelling. It features fast drop-in label rolls and snap-in ribbons to reduce changeover time and media waste while offering high-resolution 300 dpi printing.

Key benefits

• Reliable mid-volume printing for production floors, maintenance departments and workshops
• Fast media loading and snap-in ribbons for quick changeovers (~20 seconds)
• Prints small labels and sleeves accurately thanks to smart print technology
• Supports a broad range of materials and over 825 parts for facility-wide identification
• Optional Brady Workstation software suites to streamline label design and deployment

Key features

• Print technology: Thermal Transfer, 300 dpi
• Max. label width: 107.95 mm; Max. print width: 101.98 mm
• Print speed: up to 101.60 mm/s
• Display: Colour LCD touchscreen (88.90 mm)
• Connectivity: Ethernet, USB, USB 2.0
• Memory: 512 MB RAM, 195 MB IFFS Flash
• Cutter: Auto cutter with multiple cut modes
• Barcode symbologies: Code 128, Code 39, QR, Data Matrix, PDF417, and more

Technical specifications

• Article Number: 149555
• Order Reference: i3300-300-C-UK
• Ribbon Series: B30 Series
• Recommended usage per day: ~3000 labels (indicative); guidelines: 1000 labels/day for small Wire ID/OEM labels; ~600 50.8×101.6 mm safety labels/day
• Internal battery: internal, not removable (battery weight 3.000)
• Operating temperature: 10°C–40°C; Storage temperature: -20°C–50°C
• Operating humidity: 10%–85% RH (non-condensing)
• Power: AC adaptor 100–240 V, 50–60 Hz

Dimensions

• Width: 228.60 mm
• Height: 241.30 mm
• Depth: 304.80 mm
• Weight: 5.22 kg
• Minimum label height: 6.35 mm

Material characteristics

• Supports a wide range of materials including Polyester (self-laminating, Metal-detectable, FreezerBondz™), Vinyl, Polyimide, Polyolefin heat-shrink sleeves, Nylon cloth, Paper, Reflective tape and more
• Colour options: Blue, Grey (depending on media)

Printing specifications

• Resolution: 300 dpi
• Max. print length: 1524.00 mm
• Max. roll outer diameter: 109.00 mm
• Maximum label thickness: 1.77 mm
• Text sizes: 4–250 pt; common fonts included (Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana)

Compatibility

• Media: Continuous, Die-cut, Custom
• Software compatibility: Brady Workstation; Windows drivers for 3rd party software
• Programming/Emulation: Brady Custom ZPL Emulation; Brady Script Emulator for ZPL (accessory may be required)

What’s included

• Printer in cardboard box with power cord, USB cable, Brady Workstation Basic Suite, product CD (manual), cleaning kit and quick start guide

Warranty

• 1 year
