Thermal transfer label applicator printer M611-UK-QF KIT

portablewireless

Description
Portable HF QuickFlag kit for on-site cable identification and interventions. Combines an HF-enabled flag label, a handheld RFID reader and a mobile-compatible label printer to read, encode and print cable identifiers directly at the point of work.

Benefits

• Assign a unique digital identity to any wire or cable regardless of diameter using a ready-to-use HF flag label.
• Access documentation and intervention history on-site via smartphone once the label is read.
• Large printable area on the flag simplifies on-site marking and identification.
• Seamless workflow between Express Labels design app and RFID encoding/reading Toolbox on the HH85 reader.
• Exportable RFID data for traceability and post-intervention analysis.

Key features

• Dimensions: 106.42 mm (W) x 328.42 mm (H)
• Applications: Wire & cable labelling; Data & telecommunications; Electrical labelling; PCB labelling; Asset tracking; Facility and safety identification
• Battery: Rechargeable lithium-ion, 3200 mAh (shipped)
• Connectivity: Bluetooth® 5 Low Energy (Class II), USB / USB 2.0

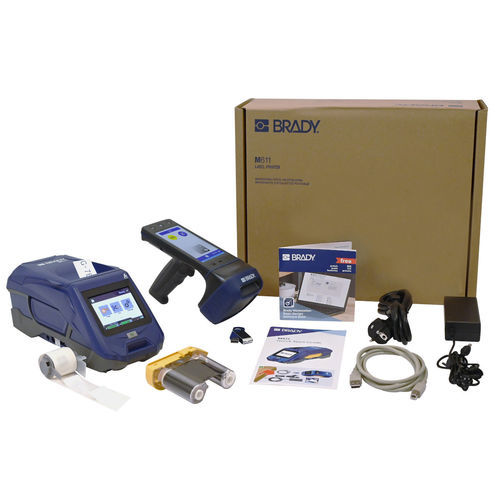

• Includes: M611 label printer kit, HH85 RFID reader, roll M6-218-483-NFC, M61-R6010 ribbon, RFID Toolbox software and Express Labels app (downloadable)

Specifications (selected)
Key Characteristics (selected)
Article Number: 321844 / 321845 (region variants)
Order reference: M611-EU-QF KIT / M611-UK-QF KIT
Total qty per pack: 1 kit
Minimum order quantity: 1
Brand: Brady®
Country of origin: Finland

Dimensions
Width: 106.42 mm
Height: 328.42 mm
Weight: 2.45 kg
Display size: 71.12 mm
Min. label height: 5.99 mm

Material compatibility
Supports wide range of Brady materials (polyester, metallised polyester, polyimide, polyolefin, nylon cloth, polypropylene, vinyl variants, FreezerBondz™, heat-shrink sleeves, reflective tape, etc.)
Colours referenced: Blue, Grey

Printing specifications
Print technology: Thermal transfer
Print speed: 50.8 mm/s
Resolution: 300 dpi
Max print width: 50.8 mm
Max print length: 1016 mm
Min label width: 6.40 mm
On-screen indicators: Battery, Bluetooth, error, ribbon/label part numbers, supply remaining
Drop/shock: Resistant to 1.2 m drops; meets MIL-STD-810G shock criteria

Compatibility
Media types: Continuous, die-cut, bulk, custom
Software: Brady Workstation; Express Labels Mobile App; Windows driver for 3rd-party software
Phone/tablet support: Android 6+; iPhone 5S or newer (iOS 10+)

What’s included & Warranty
Includes: M611 printer kit, HH85 RFID reader, M6-218-483-NFC label roll, M61-R6010 ribbon, RFID encoding Toolbox software and Express Labels app (downloadable).
Warranty: 2 years

Compliance
UNSPSC: 45101520
RoHS: Compliant with 2011/65/EU (with exemptions)
REACH: Product contains SVHC (REACH candidate list as of 04 Feb 2026)
Approvals: ANATEL; CofC; cUL; FCC; IC/ISED; IFETEL/NOM; RCM; UL; UL MEX

Notes
Charging: USB-C (0–100%) 4–10 h (typical recharge time 4 h). Smart Cell calibration and serialization features supported via software.
