Thermal transfer label applicator printer I6100-V3200-KIT-UK

direct thermalbarcode labelfor bar code labels

Product overview
The i6100 industrial label printer combined with the V3200 wireless scanner kit delivers high-accuracy, mid-to-high volume barcode labelling for industrial environments. Designed for continuous production use, it supports both direct thermal and thermal-transfer printing at 300 dpi.

Features

• Supports a wide range of media for applications from inventory and inspection to electrical and laboratory labelling
• Print speed up to 254 mm/s (capacity up to ~4,000 labels/day depending on label size and settings)
• Rugged aluminium frame suitable for industrial workstations
• Color LCD and keypad for on-device configuration
• Includes Brady® Workstation Design & Print Essentials software
• V3200 scanner with Cortex Decoder for reliable reading of small, shiny or low-contrast barcodes
• Wireless Bluetooth operation with ~100 m range and battery rated for ~100,000 scans

Key features

• Applications: Barcode labelling; Component & equipment labelling; Data & telecommunications; Electrical labelling; General identification; Inventory & inspection; Laboratory labelling; Wire & cable labelling
• Colour capability: Monochrome
• Maximum label width: 114.00 mm
• Print technologies: Direct Thermal, Thermal Transfer
• Recommended daily usage: 4,000 labels
• Resolution: 300 dpi
• Stand-alone printing: Stand-alone & peripheral modes

Key characteristics (table)
Article Number: 324893
Order Reference: I6100-V3200-KIT-UK
Total Qty per Pack: 1 Piece(s) / Box
Minimum Order Quantity: 1
Brand: Brady®
Trade name: i6100 Label Printer
Ribbon series: R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6400, R6600, R6700, R6800
Country of origin: Korea (the Republic of)

Dimensions (table)
Width: 269.00 mm
Height: 324.00 mm
Depth: 490.00 mm
Weight: 13.98 kg
Core diameter: 76.20 mm
Display size: 88.90 mm
Minimum label height: 4.75 mm

Material characteristics & supported media
Supported materials include: Direct thermal paper; FreezerBondz™ polyester; heat-shrink polyolefin; metallic and metallised polyester; non-metal polyester; polyester (self-laminating / tamper-evident / static-dissipative); nylon cloth; paper; polyimide; polyolefin; repositionable paper; self-laminating vinyl; vinyl; water-dissolvable paper; water-indicating polyester/paper laminate
Colour: Blue, Grey

Product features & operation
Battery type: Internal non-removable lithium-manganese (shipped installed)
Battery weight: 63 g
Media sensors: Black mark; Gap sensor; Head open; Notch; Reflective sensor; Ribbon end; See-through
Language support (UI): English, French, German, Spanish
Calibration: Manual
Connectivity: Ethernet, RS232, USB 2.0, USB Host
Custom labels: Yes
Cutter: None (auto-cutter accessory available)
Display: Colour LCD
Hardware options: Auto cutter, Cleaning swabs, Peel & Present
Memory: 512 MB SDRAM; 512 MB Flash
Barcode symbologies: 1D & 2D (Code 39, Code 128, EAN, UPC, GS1 DataBar, PDF417, Data Matrix, QR Code, Aztec, MicroPDF417, etc.)
Operating humidity: 10% - 85% RH non-condensing
Operating temperature: 5°C - 40°C
Storage humidity: 20% - 85% RH non-condensing
Storage temperature: -20°C - 60°C
Power source: AC adapter (100 - 240 V, 50 - 60 Hz)
OS compatibility: Windows 10, Windows 11, Windows Server 2019, Windows Server 2022
Programming language: Built-in ZPL emulator
Max. print width: 105.70 mm
Max. print length: 2.50 m
Max. roll outer diameter: 203.00 mm
Max. label thickness: 0.30 mm
Min. label width: 4.00 mm

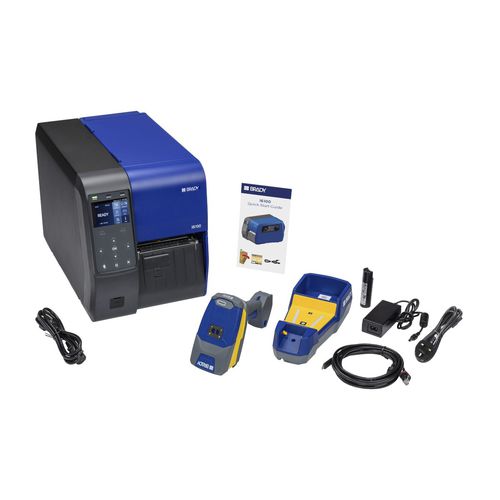

What's included

• i6100 printer (boxed)
• Brady® Workstation Design & Print Essentials software
• Quick-start guide
• UK power plug
• V3200 wireless barcode reader
• V1300 Bluetooth cradle
• V1200 Li-ion battery
• USB cable (1 m)
• AC adapter

Warranty & compliance
Warranty: 2 years
UNSPSC: 45101519
Approvals: CE, FCC, UL
RoHS: Compliant with 2011/65/EU with exemptions
REACH SVHC: Contains a candidate SVHC (as per REACH list valid on 04 Feb 2026)

Notes
Designed for industrial environments and continuous labelling operations. Actual throughput depends on label size, material, layout and print settings.
