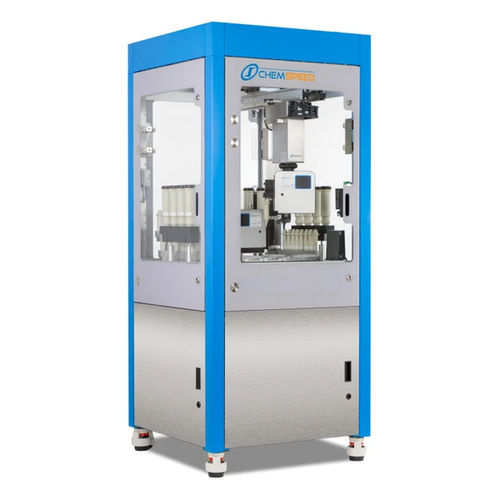

Automated sample preparation system FLEX POWDERDOSE

laboratoryfor the pharmaceutical industrydosing

Overview
Chemspeed's FLEX POWDERDOSE provides automated overhead gravimetric solid dispensing and dosing from milligram to 20 g with intuitive AUTOSUITE software. It enables automatic dispensing of powders, solids and extrudates into multiple destination formats using gravimetric control and an integrated overhead balance.

Workflow and operation
The modular FLEX POWDERDOSE deck supports fully automated sample-preparation workflows. Gravimetric dispensing units (SWILE, GDU-Pfd, GDU-P models) pick the appropriate container, dispense solids gravimetrically (sub-milligram to multigram scale), simultaneously weigh the dispensed material with the overhead balance, return the container to storage and proceed to the next. The balance can move to the destination to optimize cycle time and throughput.

Benefits

• Reduction in cost per sample up to 90+ %.
• Productivity increase by a factor of 10+.
• Ventilated hood and optional trolley for operator safety.
• Optimized footprint (approx. 3x3 ft / 90x90 cm) relative to capacity.
• Gravimetric dispensing suitable for low-density, sticky or challenging powders, any particle size, spherical or granulated shapes, beads and tablets into unlimited vial/plate/reactor formats.
• Balance resolution down to 100 μg.
• Large dispensing range from milligrams up to 20 g.
• Dispensed amount, time and related data logged in a read-only file.
• Easy data access with export to Excel and interfaces to most software environments.
• AUTOSUITE software for drag & drop experiment design and data analysis.
• Interfaces available for DOE, ML, AI, LIMS, ELN, ERP.

Applications and compatibility
Simultaneous dispensing and weighing into vials, tubes, well plates and reactors; suitable for low-density and difficult powders (sticky, variable particle sizes), beads, tablets and extrudates. Designed to maximize throughput while minimizing cost per sample.

Technical specifications

• Brand: Chemspeed
• Commercial name: FLEX POWDERDOSE
• Technology: overhead gravimetric solid dispensing / dosing
• Dispensing units: SWILE, GDU-Pfd, GDU-P models
• Dispensing range: sub-milligram to 20 g (mg to 20 g)
• Balance resolution: down to 100 μg
• Compatible destinations: vials, tubes, well plates, reactors (unlimited formats)
• Material compatibility: low density, sticky, any particle size, spherical, granulates, beads, tablets, extrudates
• Data logging: dispensed amount, time and other data stored in a read-only log file
• Software: AUTOSUITE (drag & drop experiment design), easy export to Excel and interfaces to DOE, ML, AI, LIMS, ELN, ERP
• Footprint: approx. 3x3 ft (90x90 cm)
• Safety: ventilated hood and trolley option
• Throughput improvements: cost per sample reduction up to 90+% and productivity increase 10x+
