Fully automated sample preparation system SWING POWDERDOSE

for the pharmaceutical industryfor forensicsreagent dispensing

Overview

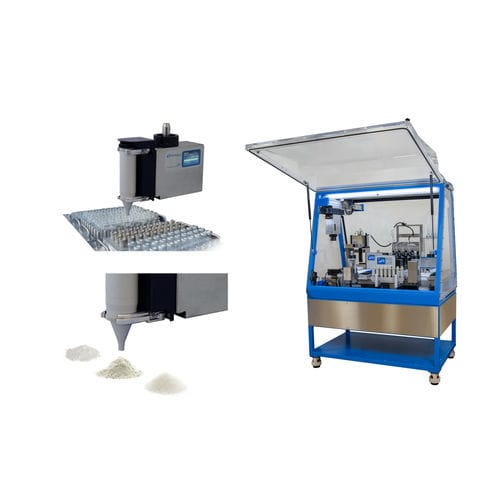

Chemspeed SWING POWDERDOSE is a modular automated platform for gravimetric solid and powder dispensing. The system performs gravimetrically controlled dispenses from sub-milligram up to multigram quantities (maximum 20 g per dispense) into vials, tubes, well-plates and reactors, supporting a wide range of solid types and container formats.

Typical deck composition / workflow elements
A typical SWING POWDERDOSE deck includes shakeable and heatable/coolable racks (crimp or screw-cap), reagent/sample racks, solid container racks and tools such as the Gravimetric Dispensing Units (SWILE, GDU-Pfd, GDU-P), an optional 4-Needle Head for volumetric liquid handling and sampling, and a capper/crimper. All tools and accessories are interoperable on the SWING POWDERDOSE robotic platform and many third-party components can be integrated on or off the deck.

Compatibility & upgrades

• Compatible with a broad range of vial, plate and reactor formats.
• Interoperable with Chemspeed tools and many 3rd-party instruments.
• Available analytical upgrade interfaces: GC, HPLC, IC, NMR, NIR/MIR, particle size analysis and imaging.

Benefits

• Significant reduction of cost per sample and increased throughput.
• Gravimetric dispensing suitable for low-density, sticky, any particle size, spherical or granulate shapes, beads and tablets.
• Balance relocates to dispensing destination to improve speed and efficiency.
• Selectable balance resolutions: 1 mg, 0.1 mg, 0.01 mg; dispensing range up to 20 g.
• Optional 4-Needle Head for integrated volumetric liquid handling and sampling.
• Process parameters and dispensed amounts are logged in a read-only file for data integrity.
• AUTOSUITE software for drag & drop experiment design and data analysis; interfaces to DOE, ML/AI, LIMS, ELN, ERP.

Technical specifications

• Product: SWING POWDERDOSE automated gravimetric solid/powder dispensing platform.
• Gravimetric dispensing units: SWILE, GDU-Pfd, GDU-P.
• Dispensing range: sub-milligram to multigram; up to 20 g per dispense.
• Balance resolution options: 1 mg, 0.1 mg, 0.01 mg.
• Supported solids: low density, sticky, all particle sizes, spheres, granulates, beads, tablets.
• Supported containers: vials, tubes, well-plates, reactors; multiple rack formats including shakeable and heatable/coolable crimp or screw-cap racks.
• Optional tools: 4-Needle Head, capper/crimper, stirrers/agitators.
• Data: read-only log file capturing dispensed amount and process parameters (stirrer speed, temperature, pressure, time, etc.).
• Software: AUTOSUITE; interfaces to DOE, ML/AI, LIMS, ELN, ERP.
• Integration / upgrades: interfaces for GC, HPLC, IC, NMR, NIR/MIR, particle size analysis, imaging; support for many 3rd-party components on/off deck.
