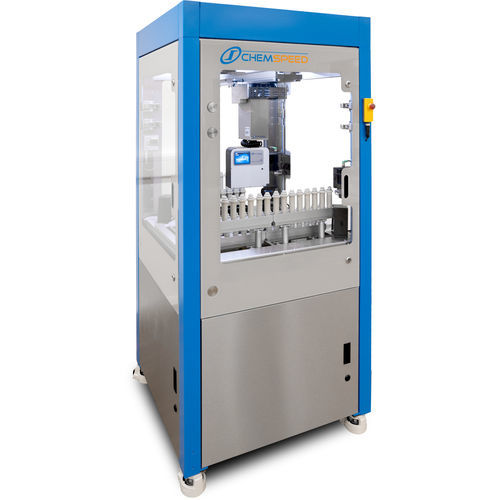

Automatic sample preparation system FLEX SWIP

roboticfor forensicsfor the pharmaceutical industry

Overview
The SWIP gravimetric dispensing solution addresses the need for accurate, automated transfer of viscous and honey-like compounds in pharmaceutical R&D and compound-library workflows. Manual reformatting is labor-intensive and prone to errors; SWIP enables unattended, traceable transfers at sub-droplet scales.

Solution
Chemspeed’s SWIP implements a gravimetric one-to-one "pick & decision dispense" workflow for true sub-droplet reformatting and dispensing of viscous liquids. The system uses an overhead gravimetric dispensing tool with automated selection and dosing of disposable glass tips to deliver target amounts precisely.

Benefits

• High dosing accuracy and precision through gravimetric decision dispensing
• Wide dispensing range from <100 μg up to mg with ±10 μg resolution
• Elimination of cross-contamination using disposable glass tips
• No dead volume—maximizes use of valuable compounds
• Unattended operation for improved lab throughput
• Fully inert glass fluid path

Disposable tips
Disposable glass tips (SWIPs) ensure sample integrity by removing cross-contamination risk. Tips are stored and supplied by an automated SWIP dispenser and are available in multiple diameters chosen to match the target dispense amount.

Technical specifications

• Gravimetric sub-droplet reformatting/dispensing of viscous liquids and honey-like compounds
• Fully automated one-to-one gravimetric "pick & decision dispense" workflow
• Based on Chemspeed proprietary overhead gravimetric dispensing tool design
• Dispensing range: <100 μg to mg
• Resolution: ±10 μg
• No cross-contamination (use of disposable glass tips - SWIPs)
• No dead volume
• Unattended operation capability
• Materials: fully inert glass tips (SWIPs) available in different diameters
