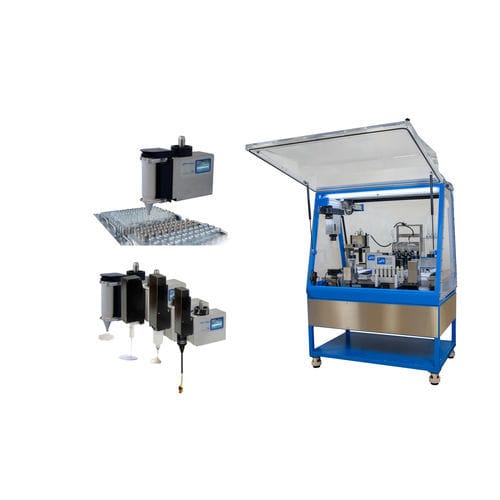

Automatic sample preparation system SWING XDOSE

for the pharmaceutical industryfor forensicsreagent dispensing

Overview
Manual sample preparation for reactions, formulations and analysis is time-consuming and error-prone. SWING XDOSE automates gravimetric dispensing of solids, powders, liquids, viscous liquids and waxes by combining an overhead gravimetric balance movement (patented) with precision dispensing hardware and intuitive software.

Product summary
Automated gravimetric dispensing into vials, tubes, plates or reactors without moving the destination. The system supports volumetric liquid handling via a 4-needle head and can be integrated with additional robotic tools to create multi-step workflows. Balance resolution options and a broad dispensing range enable precise dosing from a few mg to several grams. Configurable racks and trays ensure compatibility with customer formats. Ventilated hood options provide controlled handling under inert atmosphere. AUTOSUITE software offers drag & drop experiment design and supports DOE, ML/AI, LIMS and ELN integration.

Workflow (SWING XDOSE)

• SWING XDOSE migrated workflow
• Gravimetric dispensing of viscous liquids
• Gravimetric dispensing of solids and powders
• Gravimetric dispensing of highly viscous liquids
• Gravimetric dispensing of waxes and pastes
• (Screw) capping and crimping
• Labeling and barcode reading
• Mixing and thermal processing (heating/cooling)

Benefits

• Reduce cost per sample up to 90%+
• Increase throughput by an order of magnitude
• Versatile gravimetric preparation for solids, liquids, viscous materials and waxes
• 4-Needle head for volumetric liquid handling and sampling
• Balance moves to the destination to increase speed and efficiency
• Balance resolution options: 1 mg, 0.1 mg, 0.01 mg
• Dispensing range from a few milligrams up to several grams
• Modular robotic tool can be combined with other tools for multi-step workflows
• Customizable racks/trays for maximum format compatibility
• Ventilated hood option for inert-atmosphere handling of sensitive reagents
• AUTOSUITE — drag & drop experiment design, execution and analysis
• Interfaces for DOE, ML/AI frameworks, LIMS and ELN

Software & integration
AUTOSUITE enables drag & drop experiment design, execution, analysis and reporting. ARKSUITE orchestrates multiple systems and manual lab processes, offering workflow and experiment management, messaging, status and inventory management. Both support integration with DOE tools, ML/AI frameworks and laboratory information systems.

Technical specifications

• Model / Workflow name: SWING XDOSE
• Dispensing modes: gravimetric dispensing of solids, powders, liquids, viscous liquids, pastes and waxes
• Volumetric liquid handling: 4-Needle Head for liquid handling and sampling
• Balance resolution options: 1 mg, 0.1 mg, 0.01 mg
• Dispensing range: from a few milligrams up to several grams
• Balance movement: balance moves to the destination to increase speed and efficiency
• Modularity: robotic dispensing/dosing tool can be combined with other tools for multi-step workflows
• Customization: configurable racks/trays for maximum compatibility with user formats
• Environmental control: ventilated hood option for handling under fully inert atmosphere
• Software: AUTOSUITE for experiment design/execution/analysis; ARKSUITE for orchestration
• Integrations: interfaces for DOE, ML/AI frameworks, LIMS, ELN
