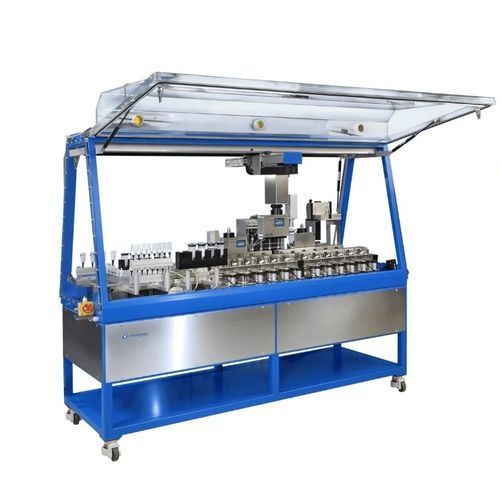

Laboratory workstation for the pharmaceutical industry EMULSIFIER

fully automatedsamplingmodular

Overview
Chemspeed EMULSIFIER provides fully automated emulsion formulation screening with integrated characterization (imaging, particle size distribution, NIR, micelle distribution) for applications including personal care, home care, nutrition, agrochemicals and enhanced oil recovery. Patented overhead gravimetric dispensing for solids and (highly) viscous liquids, combined with disposable formulation vials, precision vessels/blenders, a 4-Needle volumetric head and AUTOSUITE software, standardizes, digitizes and accelerates formulation workflows. Modular deck design optimizes throughput while ensuring traceability and process control.

Workflow

• Dispense powders
• Start mixing / shaking
• Dispense (highly) viscous liquids
• Dispense low viscous liquids
• Observation of dissolution and droplet diffusion
• Particle size analysis
• NIR (near-infrared) measurements
• Forced stability testing

Benefits

• Up to 150 tested emulsions per day
• 4-Needle head for volumetric liquid handling and sampling
• Gravimetric dispensing for solids, powders, liquids and highly viscous materials into disposable formulation vials and precision vessels/blenders
• The balance moves to the destination to increase speed and efficiency
• Balance resolution options: 1 mg, 0.1 mg or 0.01 mg
• Large dispensing range from milligrams up to grams
• Integrated imaging and image analysis
• Integrated micelle distribution measurement
• Continuous real-time monitoring and control of formulation parameters including internal and jacket temperature, shear rate and viscosity, scraping speed, reflux and pH; inert atmosphere available if desired
• Flexible adjustment of scraper positioning and choice of scraper materials (e.g. PTFE, PEEK)
• All dispensed amounts, mixing speed, temperature, time and other data are stored in a read-only log file
• AUTOSUITE software: drag & drop experiment design with integrated data analysis
• Interfaces available for DOE, ML, AI and integrations such as LIMS, ELN and ERP

Technical specifications

• Product name / workflow: EMULSIFIER
• Automation: fully automated emulsion formulation screening and integrated characterization
• Dispensing technology: overhead gravimetric dispensing/dosing (patented)
• Liquid handling: 4-Needle volumetric head for liquids and sampling
• Viscous handling: supports (highly) viscous liquids
• Dispensing range: from milligrams up to grams
• Balance resolution: selectable 1 mg, 0.1 mg or 0.01 mg
• Disposable formulation vials and precision formulation vessels / blenders supported
• Integrated analytics: imaging/image analysis, particle size distribution (PSD), micelle distribution measurement, NIR
• Stability testing: forced stability testing capability
• Process control: continuous real-time monitoring and control of internal/jacket temperature, shear rate, viscosity, scraping speed, reflux and pH
• Scraper options: adjustable positioning/orientation; materials e.g. PTFE, PEEK
• Data: read-only log file storing dispensed amounts, mixing speed, temperature, time, etc.
• Software: AUTOSUITE for experiment orchestration; interfaces for DOE, machine learning/AI, LIMS, ELN, ERP
• Typical throughput: up to 150 emulsions tested per day
