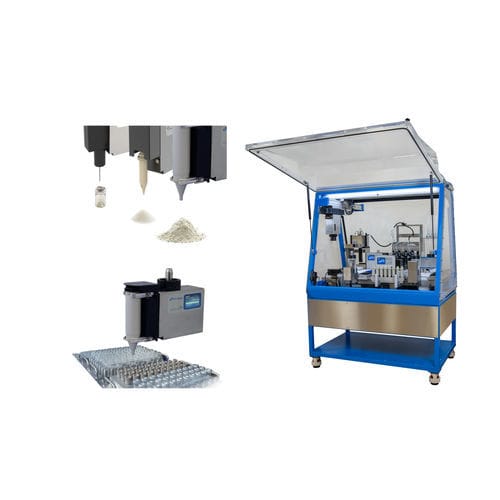

Fully automated sample preparation system SWING RP

for the pharmaceutical industrymixingmodular

Overview
Automated preparation and dispensing of solids and liquids for high-throughput library synthesis, catalyst screening and related workflows. Patented overhead gravimetric dispensing enables precise solid dosing of challenging materials and parallel volumetric liquid operations.

Workflow
SWING RP

• Volumetric dispensing of liquids
• Gravimetric dispensing of solids (e.g., catalysts, reagents)
• Optional homogenizing and sonication
• Capping options: crimping or screw capping
• Optional mixing

Benefits

• Reduce cost per sample by up to 90%
• Increase throughput by an order of magnitude (10×+)
• Gravimetric solid handling for low-density, sticky, varied particle sizes, beads and tablets into unlimited vial/plate/reactor formats
• 4-needle head for parallel volumetric liquid handling and sampling
• Mobile balance: balance moves to destination to improve speed and efficiency
• Selectable balance resolution: 1 mg, 0.1 mg or 0.01 mg
• Wide dispensing range from micrograms (μg) up to grams (g); compatible with combined robotic toolsets for complex workflows
• Comprehensive read-only data logging: dispensed amount, stirrer speed, temperature, pressure, time, etc.
• AUTOSUITE software for drag & drop experiment design and execution
• Interfaces available for DOE, ML, AI, LIMS and ELN integration

Features / Capabilities

• Patented overhead gravimetric dispensing solution for solids and liquids
• Automated dispensing of powders, solids, extrudates and liquids into multiple destination formats
• High-precision gravimetric dispensing with selectable resolutions (1 mg / 0.1 mg / 0.01 mg)
• Wide dosing range: μg to g
• 4-needle volumetric head for parallel liquid operations and sampling
• Balance mobility to improve speed and throughput
• Compatibility with many vial, plate and reactor formats
• Capable of handling challenging solids: low density, sticky materials, varied particle sizes, beads and tablets
• Workflow toolset: homogenizing/sonifying, mixing, capping (crimp or screw)
• Comprehensive experiment logging (dispensed amount, stirrer speed, temperature, pressure, time, etc.)

Software
AUTOSUITE provides drag & drop experiment design, execution, analysis and read-only logging. Integration interfaces supported for design-of-experiments (DOE), machine learning (ML), artificial intelligence (AI), laboratory information management systems (LIMS) and electronic lab notebooks (ELN).

Technical characteristics / specifications

• Model / Workflow: SWING RP
• Brand: Chemspeed
• Dispensing modes: gravimetric solid dispensing and volumetric liquid dispensing
• Liquid handling: 4-Needle Head for volumetric operations and sampling
• Balance resolution options: 1 mg, 0.1 mg, 0.01 mg
• Dispensing range: from micrograms (μg) up to grams (g)
• Solid handling capability: low density, sticky materials, varied particle sizes, spherical/granulate shapes, beads, tablets
• Optional tools: homogenizing/sonifying, mixing, capping (crimp or screw)
• Data logging: dispensed amount, stirrer speed, temperature, pressure, time and other parameters stored in a read-only log file
• Software: AUTOSUITE with drag & drop interface; integration for DOE, ML, AI, LIMS, ELN
