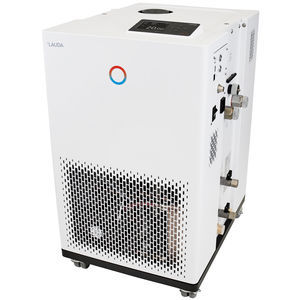

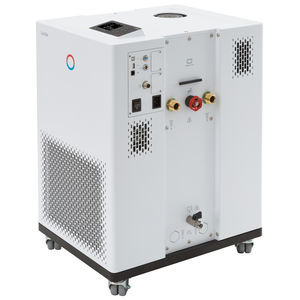

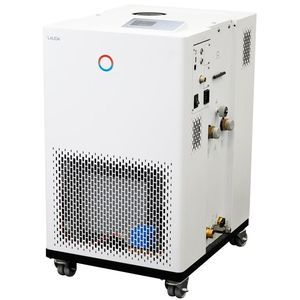

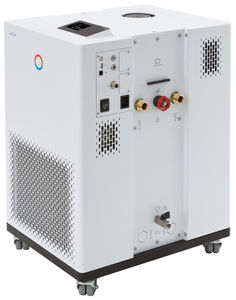

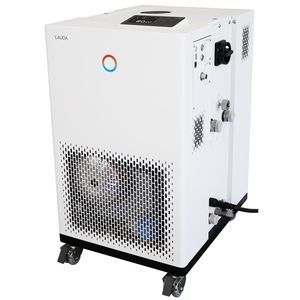

Process thermostat Ultratemp UT 2505 W

on castersdigitalelectronic

Product description
LAUDA Ultratemp process thermostats provide precise regulation to an external temperature in the range −5 to 60 °C. With a temperature stability of ±0.5 K and a water-cooled design, the units minimise heat emission to the environment and are suitable for use with non-flammable heat transfer fluids (water or water/glycol). Integrated interfaces and industrial components support continuous operation in demanding process applications.

Features

• Process thermostat with integrated heater
• Integrated Ethernet interface and web server operation
• Protection class IP 54 (suitable for outdoor installation)
• Additional pump for internal circulation; industrial block pump with high pressure and flow
• Integrated water filter
• Graphic LCD with clear text menu navigation
• Connection for external Pt100 temperature sensor
• Stainless steel housing
• Digital display of pump pressure
• Utilises traditional refrigerants (HFCs) in accordance with EU regulation 573/2024
• Fully electronic continuous PID controller
• Operates with non-flammable liquids (water, water/glycol)
• Condenser cooling: water

Working range

• Min. working temperature: -5 °C
• Max. working temperature: 60 °C
• Temperature stability: ±0.5 K
• Ambient temperature range: -15 … 50 °C

Technical data (according to DIN 12876)

• Working temperature range: -5 … 60 °C
• Ambient temperature range: -15 … 50 °C
• Temperature stability: ±0.5 K
• Heater power max.: 35 kW
• Max. discharge pressure (50 Hz): 3.2 bar
• Pump pressure nominal (50 Hz): 3 bar
• Max. flow rate (pressure) 50 Hz: 250 L/min
• Nominal pump flow rate: 90 L/min
• Inlet / outlet connection thread (inside): Rp 1 1/2
• Water cooling connection thread (inside): Rp 1 1/2
• Max. filling volume: 100 L
• Cooling water temperature min.: 0 °C
• Cooling water temperature max.: 45 °C
• Pressure difference cooling water min.: 2 bar
• Maximum pressure cooling water: 6 bar
• Cooling water flow rate: 60.6 L/min
• Dimensions (WxDxH): 1138 x 1486 x 1792 mm
• Weight: 520 kg
• Power supply: 400 V; 3/PE; 50 Hz

Cooling capacity 50 Hz (table)
60 °C — 29.8 kW
30 °C — 29.8 kW
20 °C — 25.8 kW
15 °C — 22.2 kW
10 °C — 19.1 kW
5 °C — 15.9 kW
0 °C — 13.8 kW
-5 °C — 11 kW

Characteristics / technical specifications

• Product line: Ultratemp
• Model: UT 2505 W
• Working temperature range: -5 … 60 °C
• Temperature stability: ±0.5 K
• Heater power (max): 35 kW
• Pump nominal flow / max flow: 90 L/min / 250 L/min
• Pump pressures: nominal 3 bar; max discharge 3.2 bar (50 Hz)
• Cooling: water-cooled condenser; cooling water flow 60.6 L/min; cooling water temp range 0 … 45 °C
• Connections (inside): Rp 1 1/2 (process & water cooling)
• Max. filling volume: 100 L
• Dimensions (WxDxH): 1138 x 1486 x 1792 mm
• Weight: 520 kg
• Protection class: IP 54
• Controller: fully electronic continuous PID; operation via web server; integrated Ethernet
• Fluids: water or water/glycol (non-flammable)
