Laboratory thermostat PRO series

compactdigitalelectronic

Overview

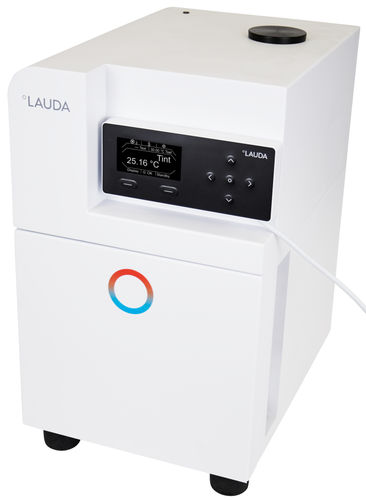

LAUDA PRO circulation cooling thermostats are compact, tower-style circulation thermostats engineered for professional temperature control of external applications. Low active liquid volumes enable rapid temperature change. Two removable control units (Base or Command Touch) are available and can be used as remote controls.

Benefits and added value

• Compact tower design for a small footprint
• LAUDA Varioflex pump with 8 output levels; pump connections at the rear
• SmartCool energy-saving digital cooling control with automatic compressor regulation
• Low active liquid volume for fast heating/cooling of connected equipment
• Integrated cooling coil supplied as standard for counter-cooling
• Hybrid cooling: ambient air cooling with optional cooling-water operation
• Removable control units (Base or Command Touch) usable as remote controls

Working range
Min. working temperature: -90 °C
Max. working temperature: 250 °C
Temperature stability: 0.05 ± K

Representative product variants (selection)
Product | Min. working temp | Max. working temp | Heater power max. | Cooling output at 20 °C 50 Hz
PRO P 2 E | 80 °C | 250 °C | 2.5 kW | -
PRO P 2 EC | 80 °C | 250 °C | 2.5 kW | -
PRO RP 240 E | -40 °C | 200 °C | 2.5 kW | 0.6 kW
PRO RP 240 EC | -40 °C | 200 °C | 2.5 kW | 0.6 kW
PRO RP 245 E | -45 °C | 200 °C | 2.5 kW | 0.8 kW
PRO RP 245 EC | -45 °C | 200 °C | 2.5 kW | 0.8 kW
PRO RP 250 E | -50 °C | 200 °C | 2.5 kW | 1.5 kW
PRO RP 250 EC | -50 °C | 200 °C | 2.5 kW | 1.5 kW
PRO RP 290 E | -90 °C | 200 °C | 2.5 kW | 0.8 kW
PRO RP 290 EC | -90 °C | 200 °C | 2.5 kW | 0.8 kW

Device dimensions (examples)
PRO RP 290 EC / PRO RP 290 E: 390 x 600 x 685 mm
PRO RP 250 EC / PRO RP 245 EC / PRO RP 240 EC / PRO RP 250 E / PRO RP 245 E / PRO RP 240 E: 300 x 430 x 675 mm
PRO P 2 EC / PRO P 2 E: 250 x 365 x 425 mm

Characteristics / Technical specifications

• Low active liquid/filling volume for rapid temperature changes and low material consumption
• Operating temperature range depends on model: from -90 °C up to 250 °C
• Temperature stability approx. 0.05 ± K
• Cooling outputs vary by model (typical: 0.6 kW, 0.8 kW, 1.5 kW at 20 °C)
• Heater power up to approx. 2.5 kW on many types
• LAUDA Varioflex pump with 8 output levels; pressure-suction pump configuration with rear connections
• Integrated cooling coil supplied as standard for counter-cooling
• SmartCool digital cooling control with automatic compressor regulation for energy efficiency
• Hybrid refrigeration: air cooling or optional cooling water operation
• Compact tower design for space-saving installation
• Two removable control units available: Base and Command Touch (both usable as remote controls)
• Designed for external professional applications requiring rapid temperature changes

Documentation and downloads
Operating manuals, product brochures, datasheets, certificates and software for control units (Base, Command Touch) and thermostat models are available as PDF downloads.
