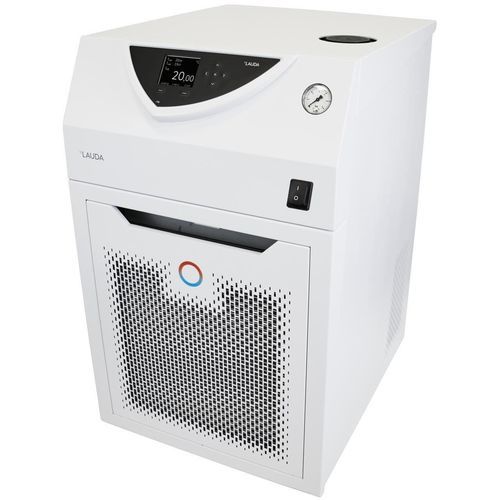

Laboratory chiller on casters Variocool VC 3000

circulatingair-cooledwater-cooled

Product overview
Variocool VC 3000 process thermostat for circulating non-flammable heat transfer liquids. Available in air-cooled or water-cooled versions and fitted with steerable fixed castors. Combines a coloured TFT controller, USB interface and integrated programmer for industrial temperature control.

Features

• Suitable for non-flammable media (water, water/glycol)
• Coloured TFT display showing actual & set values plus graphical temperature profile
• Fully electronic PID controller with integrated programmer (up to 150 segments, split into 5 programmes)
• Powerful pressure pump: up to 37 L/min, max. discharge pressure 3.2 bar
• SmartCool digital cooling management with compressor on/off control for energy efficiency
• Upgradeable with interface modules: analogue, contact, RS232/485, Profibus, Ethernet‑USB
• Top filler opening and rear drain tap; adjustable bypass for pressure limiting
• USB interface as standard and remote fault indication via floating contact
• Electronic level indication and low-level alarm
• Uses traditional HFC refrigerants in compliance with EU F-gas regulation 573/2024

Working range
Min. working temperature: -20 °C
Max. working temperature: 80 °C
Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -20 … 80 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 2.6 kW
• Current consumption: 14 A
• Max. pump flow: 37 L/min
• Max. discharge pressure: 3.2 bar
• In/Outlet connection thread (outside): G 3/4"
• Pressure adjustment: bypass
• Filling volume: min. 20 L, max. 33 L
• Dimensions (WxDxH): 550 x 650 x 970 mm
• Weight: 89 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz) - tempering medium: Ethanol

• 20 °C - 3 kW
• 10 °C - 2.4 kW
• 0 °C - 1.68 kW
• -10 °C - 0.95 kW
• -20 °C - 0.45 kW

Additional product information
Part no.: L000715
Selectable device variants for different voltages and plugs are available.

Technical specifications

• Model: Variocool VC 3000
• Intended media: non-flammable heat transfer liquids (water, water/glycol)
• Controller: fully electronic continuous PID with coloured TFT and programmer (max. 150 segments)
• Pump: powerful pressure pump, max. flow 37 L/min, max. discharge pressure 3.2 bar
• Filling volume: min. 20 L, max. 33 L
• Cooling management: SmartCool for energy-saving compressor control
• Dimensions & weight: 550 x 650 x 970 mm, 89 kg
• Electrical: 230 V; 50 Hz (variant dependent), current consumption 14 A, max. power 2.6 kW
