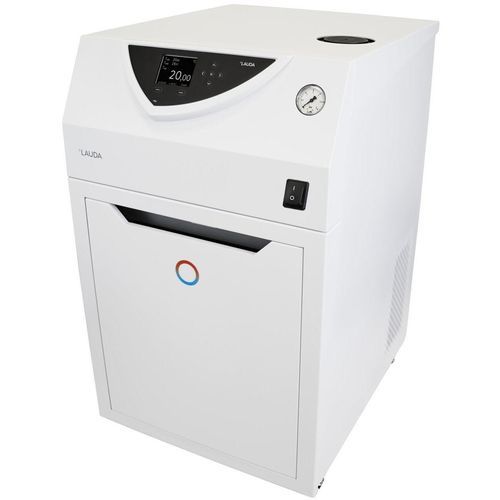

Process thermostat Variocool VC 3000 W

on castersfloor-standingdigital

Product description
All models are available in air- or water-cooled versions (W) and are equipped with steerable fixed castors. Sound insulation or the option for outdoor installation is available for the powerful process thermostats in tower design from the VC 5000.

Features

• Process thermostat suitable for use with non-flammable heat transfer liquids
• Easy input via cursor and soft keys
• Powerful pressure pump
• Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
• Filler opening on top, drain tap on the backside
• Condenser cooling: Water
• Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
• Fully electronic continuous controller with PID action
• USB interface as standard
• Integrated programmer with max. 150 segments, splitable in 5 programmes
• SmartCool system for energy-saving digital cooling management including compressor on-off control
• Operates with non flammable liquids (water, water/glycol)
• Clear text menu navigation, six selectable languages: DE, EN, FR, ES, IT, RU
• Electronic level indication and low level alarm
• Remote fault indication through floating contact
• Adjustable bypass for pressure limiting
• Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024

Working range
Min. working temperature: -20 °C
Max. working temperature: 80 °C
Temperature stability: 0.05 ± K

Cooling capacity (50 Hz)
Temperature | Tempering medium | Cooling capacity 50 Hz
20 °C | Ethanol | 2.8 kW
10 °C | Ethanol | 2.2 kW
0 °C | Ethanol | 1.48 kW
-10 °C | Ethanol | 0.75 kW
-20 °C | Ethanol | 0.25 kW

Data sheet / Documents
Data sheet available for Variocool VC 3000 W (product datasheet).

Technical specifications

• Part no.: L000962
• Working temperature range: -20 ... 80 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 2.6 kW
• Current consumption: 14 A
• Max. discharge pressure: 4,8 bar
• Max. pump flow pressure: 37 L/min
• In / Outlet connection thread (outside): G 3/4"
• Pressure adjustment: bypass
• Min. filling volume: 20 L
• Max. filling volume: 33 L
• Water cooling connection thread (outside): 3/4 ″
• Recommended cooling water temperature: 15 °C
• Cooling water flow rate: 7.5 L/min
• Pressure difference cooling water min.: 0.7 bar
• Maximum pressure cooling water: 10 bar
• Dimensions (WxDxH): 550 x 650 x 970 mm
• Weight: 88 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
