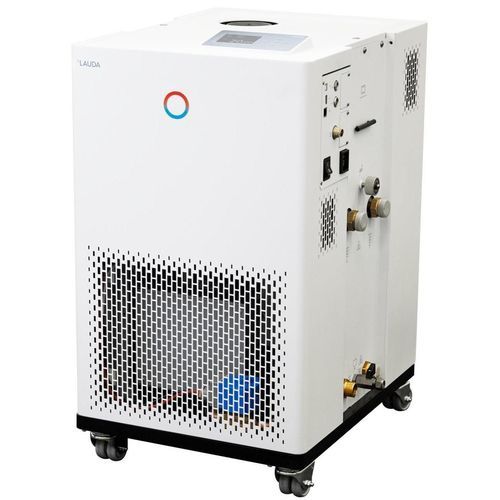

Laboratory thermostat Integral IN 4 XTW

processon castersdigital

Short description
Operate the LAUDA Integral IN 4 XTW process thermostat from the local coloured TFT display or optionally via an external touch operating unit. The unit supports browser-based operation through an integrated web server and provides secure data transfer for remote monitoring and control. Cooling water supply is required for operation.

Key features

• High-temperature process thermostat for dynamic temperature control in external circuits
• Management of heat transfer media with stored property profiles
• Fully electronic continuous controller with PID action for internal and external control
• Adjustable over-temperature protection with acoustic alarm; suitable for flammable and non-flammable liquids
• External Pt100 port integrated; second external Pt100 possible via interface module
• Integrated adjustable bypass and digital pump pressure display
• Powerful LAUDA Variopump with 8 selectable output levels or pressure-controlled operation
• Programmer with up to 150 temperature/time segments split into 5 programs
• Integrated web server for browser-based operation (PC, tablet, smartphone); USB and Ethernet interfaces standard
• Expandable interfaces: option to add RS232/485, Profibus, analogue, contact or EtherCAT modules
• SelfCheck Assistant for system diagnostics and PowerAdapt for optimal power usage
• Very small internal volume with large non-thermostated expansion vessel (cold fluid layer system); water-cooled design

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 320 °C
• Temperature stability: 0.1 ± K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 320 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 3.5 kW
Max. power consumption: 3.7 kW
Current consumption: 16 A
Max. discharge pressure: 3.1 bar
Max. pump flow: 60 L/min
In/Outlet connection thread (outside): M30 x 1,5
Inlet/outlet hose size: 3/4″
Min. filling volume: 3.3 L
Max. filling volume: 9.5 L
Water cooling connection thread (outside): 3/4 ″
Recommended cooling water temperature: 15 °C (max 30 °C)
Cooling water flow rate: 11 L/min
Pressure difference cooling water min.: 3 bar
Maximum cooling water pressure: 10 bar
Dimensions (WxDxH): 430 x 550 x 760 mm
Weight: 52 kg
Noise level: 52 dB(A)
Power supply: 230 V; 50 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz)

• 300 °C | Pump level 8 | Thermal oil | 17 kW
• 200 °C | Pump level 8 | Thermal oil | 17 kW
• 150 °C | Pump level 8 | Thermal oil | 17 kW
• 100 °C | Pump level 8 | Thermal oil | 10 kW
• 50 °C | Pump level 8 | Thermal oil | 2 kW

Technical specifications

• Brand: LAUDA
• Model: Integral IN 4 XTW
• Part no.: L002682
• Working temperature range: 25 ... 320 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 3.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow: 60 L/min
• Pump: LAUDA Variopump with 8 selectable output levels or pressure control
• In/Outlet connection thread: M30 x 1,5
• Inlet/outlet hose size: 3/4″
• Filling volume (min/max): 3.3 L / 9.5 L
• Cooling water connection thread: 3/4 ″
• Recommended cooling water temperature: 15 °C (max 30 °C)
• Cooling water flow rate: 11 L/min
• Maximum cooling water pressure: 10 bar (min. pressure difference 3 bar)
• Dimensions (WxDxH): 430 x 550 x 760 mm
• Weight: 52 kg
• Noise level: 52 dB(A)
• Power supply / plug: 230 V; 50 Hz / Power cord with angled plug (CEE7/7)
• Interfaces: USB and Ethernet standard; option to add RS232/485, Profibus, analogue, contact or EtherCAT modules
• User interface: Coloured TFT display, web server for browser-based operation, programmer with 150 segments
