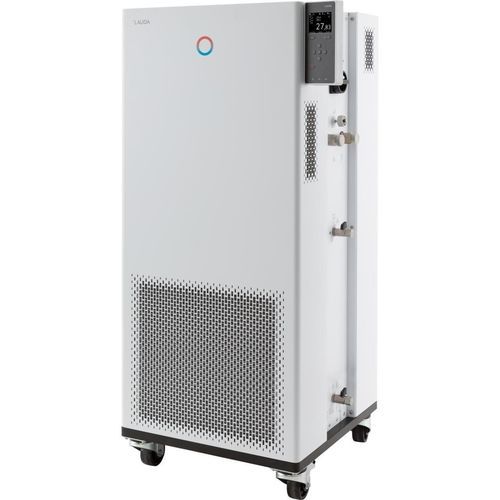

Process thermostat Integral IN 550 XT

floor-standingdigitalelectronic

Description
Integral IN 550 XT is a circulation and process thermostat with an integrated cooling system designed for dynamic temperature control of external circuits and test rigs. Operation is via a coloured TFT on the device or an optional touchscreen operating unit; remote operation is possible through the integrated web server.

Features

• Process thermostat with integrated cooling for dynamic control of external circuits
• Management of heat transfer fluids with stored fluid properties and very small internal volume
• ATEX-certified gas warning sensors with alarm and automatic switch-off plus external status interface for safety systems
• Self-adapt function to determine control parameters and fully electronic continuous PID controller for internal and external control
• LAUDA Variopump (pressure pump) with 8 selectable output levels and digital pump pressure display; pump flow up to 65 L/min
• PowerAdapt system to use the maximum allowable heat from the power supply
• Programmer with 150 temperature/time segments, up to 5 separate programs
• SmartCool energy-saving digital cooling management with compressor on/off control; uses natural refrigerants
• Remote fault indication via floating contact and quick-stop via black push-button or remote release contacts
• USB and Ethernet interfaces standard; option for up to 2 additional interfaces (RS232/485, Profibus, analogue, contact, EtherCAT)
• Low-level and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• Clear text menu navigation in six selectable languages (DE, EN, FR, ES, IT, RU) and SelfCheck Assistant for system diagnostics

Working range

• Min. working temperature: -50 °C
• Max. working temperature: 220 °C
• Temperature stability: ±0.05 K

Technical data (selected)

• Working temperature range: -50 … 220 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 8 kW
• Max. power consumption: 10.5 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow: 65 L/min
• In/outlet connection thread (outside): M30 x 1.5
• Inlet/outlet hose size: 3/4″
• Min. filling volume: 4.8 L
• Max. filling volume: 17.2 L
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 176 kg
• Noise level: 65 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)

Cooling capacity (50 Hz) - table

• 200 °C | Pump level 8 | Thermal oil | 5 kW
• 100 °C | Pump level 8 | Thermal oil | 5 kW
• 20 °C | Pump level 8 | Ethanol | 5 kW
• 10 °C | Pump level 8 | Ethanol | 4.8 kW
• 0 °C | Pump level 8 | Ethanol | 4.6 kW
• -10 °C | Pump level 8 | Ethanol | 3.3 kW
• -20 °C | Pump level 4 | Ethanol | 2.4 kW
• -30 °C | Pump level 4 | Ethanol | 1.5 kW
• -40 °C | Pump level 4 | Ethanol | 0.7 kW
• -50 °C | Pump level 2 | Ethanol | 0.3 kW

Specifications

• Model: Integral IN 550 XT
• Device type: Circulation and process thermostat with integrated cooling system
• Controller: Fully electronic continuous controller (PID) for internal & external control
• Interfaces: USB and Ethernet standard; up to 2 additional interfaces optional (RS232/485, Profibus, analogue, contact, EtherCAT)
• Pump: LAUDA Variopump (8 selectable output levels) with digital pressure display
• Safety: ATEX gas sensors (warning & switch-off), low-level and adjustable over-temperature protection, remote fault indication
• Operation: Coloured TFT display, integrated web server for browser-based operation, clear text menu
• Programming: 150 temperature/time segments, up to 5 programs
• Refrigeration management: SmartCool with natural refrigerants
