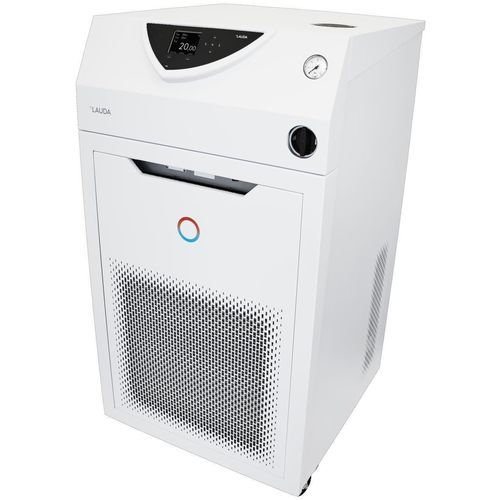

Process thermostat VARIOCOOL VC 7000

on castersfloor-standingdigital

Product description
Variocool VC 7000 is a process thermostat available in air- or water-cooled versions (W). Designed for industrial temperature control with steerable fixed castors for mobility. Tower versions (from VC 5000) offer sound insulation or an outdoor installation option. Intended for use with non-flammable heat transfer liquids (water, water/glycol).

Features

• Process thermostat for non-flammable heat transfer liquids
• Easy input via cursor and soft keys
• Powerful pressure pump (max. flow 60 L/min)
• Upgradeable with interface modules: analogue, contact, RS232/485, Profibus, Ethernet-USB
• Top filler opening and rear drain tap
• Condenser cooling: air
• Coloured TFT display showing actual & set values and graphical temperature profile
• Fully electronic continuous PID controller
• USB interface as standard
• Integrated programmer: up to 150 segments, split into 5 programmes
• SmartCool energy-saving digital cooling management with compressor on/off control
• Clear-text menu navigation in six languages: DE, EN, FR, ES, IT, RU
• Electronic level indication and low-level alarm
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• Uses conventional HFC refrigerants compliant with EU Regulation (EU) 573/2024 on F-gases

Working range

• Min. working temperature: -25 °C
• Max. working temperature: 80 °C
• Temperature stability: 0.1 ± K

Cooling capacity (50 Hz)
20 °C | Ethanol | 6.65 kW
10 °C | Ethanol | 4.95 kW
0 °C | Ethanol | 3.35 kW
-10 °C | Ethanol | 2.05 kW
-20 °C | Ethanol | 0.95 kW
-25 °C | Ethanol | 0.3 kW


Technical specifications

• Working temperature range: -25 … 80 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 4.5 kW
• Max. power consumption: 8.8 kW
• Current consumption: 15 A
• Max. discharge pressure: 5.0 bar
• Max. pump flow: 60 L/min
• Inlet / outlet connection thread (outside): G 1 1/4"
• Pressure adjustment: bypass
• Min. filling volume: 48 L
• Max. filling volume: 64 L
• Dimensions (WxDxH): 650 x 670 x 1250 mm
• Weight: 124 kg
• Power supply: 400 V; 3/N/PE; 50 Hz
• Power plug (standard variant shown): Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)
• Part number: L000951
