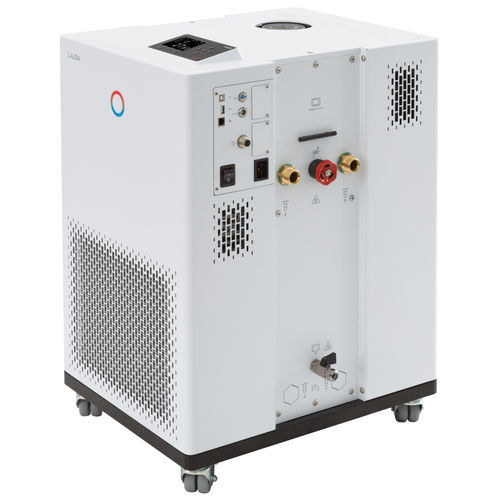

Laboratory thermostat Integral IN 130 T

processon castersdigital

Product description
The Integral process thermostats feature a modular interface concept that allows flexible integration into industrial processes. Devices are delivered with standard interfaces such as Ethernet, USB and Pt100; additional interfaces and communication protocols can be added via plug‑in modules.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer media with stored fluid properties
• Fully electronic continuous controller with PID action for internal and external control
• Low‑level protection and adjustable over‑temperature protection with acoustic alarm suitable for flammable and non‑flammable liquids
• Port for integrated external Pt100; second external Pt100 possible via interface module
• Programmer with 150 temperature/time segments, separable into 5 programs, optimised for temperature ramps
• Integrated web server for browser‑based operation via PC, tablet or smartphone with authentication and encryption
• Operates with conventional refrigerants (HFC) in accordance with F‑Gas Regulation (EU) 573/2024
• Coloured TFT display showing actual and set values plus graphical temperature profile
• Easy input via cursor and soft keys; dedicated Tmax key for overtemperature
• Self‑adapt function for automatic determination of control parameters
• Extremely powerful pressure pump with digital pump pressure display
• Remote fault indication via floating contact
• Adjustable bypass for pressure limitation
• SmartCool system for energy‑saving digital cooling management including compressor on/off control
• Clear‑text menu navigation in six languages: DE, EN, FR, ES, IT, RU
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to use the maximum permissible heating power without overloading the supply
• USB and Ethernet interfaces standard; expandable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact or EtherCAT)
• Condenser cooling: air

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 120 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz)
100 °C | Thermal oil | 1.4 kW
20 °C | Ethanol | 1.4 kW
10 °C | Ethanol | 1.35 kW
0 °C | Ethanol | 1.2 kW
-10 °C | Ethanol | 0.8 kW
-20 °C | Ethanol | 0.4 kW
-30 °C | Ethanol | 0.1 kW


Technical specifications

• Working temperature range: -32 … 120 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.7 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.5 bar
• Max. pump flow (pressure): 40 L/min
• In / Outlet connection thread (outside): G 3/4″
• Inlet/outlet hose size: 3/4″
• Min. filling volume: 3.6 L
• Max. filling volume: 8.7 L
• Dimensions (WxDxH): 430 x 550 x 760 mm
• Noise level: 61 dB(A)
• Power supply example: 230 V; 50 Hz (variant shown)
• Power plug example: Power cord with angled plug (CEE7/7)
