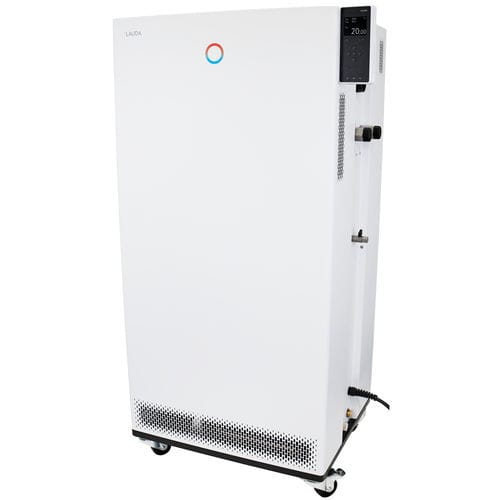

Process thermostat Integral IN 1830 TW

floor-standingcompactdigital

Product description
With a modular interface concept, the Integral IN 1830 TW process thermostat integrates into industrial processes with maximum flexibility. Standard interfaces include Ethernet, USB and Pt100; additional interfaces and protocols can be added via modules. The device combines powerful heating and cooling capacity with a compact internal volume for fast temperature changes and reliable external circuit control.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer fluids with stored fluid properties
• Fully electronic continuous controller with PID action for internal and external regulation
• Low-level detection and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• Standard USB and Ethernet interfaces; data export via USB stick
• Upgradeable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact or EtherCAT)
• Programmer with 150 temperature/time segments, selectable as up to 5 programs, optimized for temperature ramps
• Water-cooled condenser
• Coloured TFT display showing actual and set values simultaneously and graphical temperature profile
• Easy input via cursor and soft keys; dedicated Tmax key for overtemperature protection
• Self-adapt function to determine optimal control parameters
• High-performance pressure pump; optional additional internal circulation pump
• Port for external Pt100 integrated; second external Pt100 possible via interface module
• Adjustable bypass for pressure limiting
• Integrated web server for browser-based operation in local networks via PC, tablet or smartphone; secure data transfer with authentication and encryption
• Uses traditional refrigerants (HFCs) in accordance with EU Regulation (EU) 573/2024 on F-gases
• Clear-text menu navigation; six selectable languages: DE, EN, FR, ES, IT, RU
• SelfCheck assistant for system diagnosis
• PowerAdapt system to use available heating power without overloading the supply
• Remote fault indication via floating contact
• Digital pump pressure display
• SmartCool energy-saving digital cooling management with compressor on/off control

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 150 °C
• Temperature stability: 0.1 ± K

Cooling capacity (table)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
150 °C | Thermal oil | 19 kW | 19 kW
100 °C | Thermal oil | 19 kW | 19 kW
20 °C | Ethanol | 19 kW | 19 kW
10 °C | Ethanol | 15 kW | 15 kW
0 °C | Ethanol | 11.5 kW | 11.5 kW
-10 °C | Ethanol | 7.5 kW | 7.5 kW
-20 °C | Ethanol | 5 kW | 5 kW
-30 °C | Ethanol | 2.7 kW | 2.7 kW

Downloads (available document types)
Data sheet, Operating instructions, Brochure, Safety data sheet, Software, Customer information, Certificate, Installation manual

Technical specifications

• Working temperature range: -32 ... 150 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 16 kW
• Max. power consumption: 18 kW
• Current consumption: 25 A
• Max. discharge pressure: 5.5 bar (50 Hz), 7.0 bar (60 Hz)
• Max. pump flow (pressure): 60 L/min (50 Hz); 70 L/min (60 Hz)
• Inlet/outlet connection thread (outside): M38 x 1.5
• Inlet/outlet hose size: 1"
• Min. filling volume: 9.7 L
• Max. filling volume: 25.5 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C
• Cooling water temperature max.: 30 °C
• Cooling water flow rate: 29 L/min
• Cooling water pressure difference min.: 0.8 bar
• Maximum cooling water pressure: 10 bar
• Dimensions (WxDxH): 760 x 650 x 1605 mm
• Weight: 244 kg
• Noise level: 67 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 32 A)
