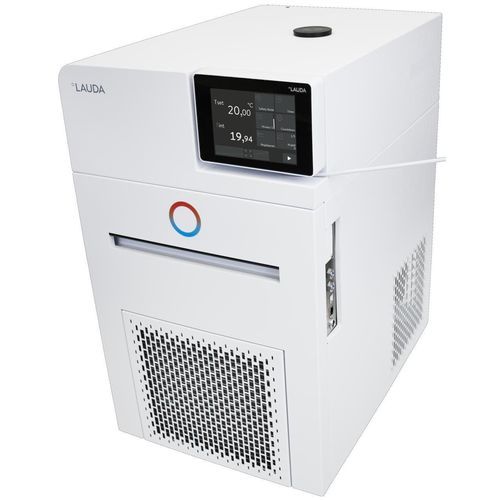

Process thermostat PRO RP 290 EC

benchtopcompactdigital

Description
The PRO RP 290 EC circulating/process thermostat is designed for external circulation and rapid temperature control in industrial processes. It supports very low to high temperatures with a compact footprint and integrated hybrid cooling for flexible operation.

Features

• Thermostatic circulator with microprocessor control and integrated cooling system
• Detachable command console usable as remote control
• Timer and countdown function
• USB and Ethernet interfaces as standard
• PowerAdapt system to optimise heat usage according to supply constraints
• Tower design with small footprint for space-saving installation
• Stainless steel bath vessel (insulated, with overflow and drain)
• Uses natural refrigerants
• Large 5.7" Multi-Touch-Color display for operation
• User administration up to 20 users
• EasyUse system for simplified operation
• Retrofittable with optional interfaces (RS 232/485, Profibus, EtherCAT, analogue or contact modules)
• Low-level and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels; rear connections
• SmartCool energy-saving digital cooling management with compressor on/off control
• Data import/export via USB
• SelfCheck Assistant for system diagnosis
• Electronic continuous controller with PID action for internal and external control
• Programmer: up to 100 programs, up to 50 segments each
• Low filling volume for rapid temperature changes
• Hybrid cooling: ambient air and/or cooling water support

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 200 °C
• Temperature stability: ±0.05 K

Cooling capacity (excerpt)

• 20 °C | Pump level 8 | Ethanol | 0.8 kW
• 10 °C | Pump level 8 | Ethanol | 0.77 kW
• 0 °C | Pump level 8 | Ethanol | 0.74 kW
• -10 °C | Pump level 8 | Ethanol | 0.72 kW
• -20 °C | Pump level 4 | Ethanol | 0.7 kW
• -30 °C | Pump level 4 | Ethanol | 0.68 kW
• -40 °C | Pump level 4 | Ethanol | 0.64 kW
• -50 °C | Pump level 4 | Ethanol | 0.56 kW
• -60 °C | Pump level 4 | Ethanol | 0.39 kW
• -70 °C | Pump level 4 | Ethanol | 0.21 kW
• -80 °C | Pump level 4 | Ethanol | 0.09 kW
• -90 °C | Pump level 2 | Ethanol | 0.01 kW

Technical data (according to DIN 12876)

• Working temperature range: -90 ... 200 °C
• Operating temperature range: -90 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: ±0.05 K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.7 bar
• Pump suction max.: 0.4 bar
• Max. pump flow: 22 L/min
• In/Outlet thread (outside): M16 x 1
• In/Outlet olives Ø: 13 mm
• Min. filling volume: 2.4 L
• Max. filling volume: 4.4 L
• Dimensions (WxDxH): 390 x 600 x 685 mm
• Weight: 79 kg
• Power supply: 230 V; 50 Hz (variant dependent)
• Power plug: angled power cord (CEE7/7) (variant shown)

Model / Specifications

• Model / Part no.: L002503
• Device line: PRO (Circulation and process thermostats)
• Min. working temperature: -90 °C
• Max. working temperature: 200 °C
• Temperature stability: ±0.05 K
• Heater power max.: 2.5 kW
• Filling volume: min. 2.4 L; max. 4.4 L
• Pump: LAUDA Varioflex (pressure/suction) with 8 selectable levels
• Cooling: Hybrid cooling (ambient air and/or cooling water), integrated cooling coil
• Connections: M16 x 1 thread; 13 mm olives
• Dimensions: 390 x 600 x 685 mm; Weight: 79 kg
• Power variants available (examples): 230 V; 50 Hz, various plugs
