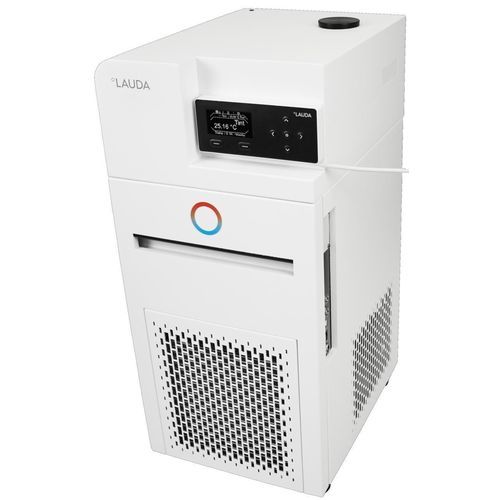

Laboratory thermostat PRO RP 245 E

processbenchtopcompact

Product description
The PRO RP 245 E is a compact circulating process thermostat designed for external applications requiring rapid temperature changes and precise control. Low filling volume and an integrated cooling coil enable fast thermal response. The unit features a stainless steel bath, pressure-suction pump and hybrid cooling (air and optional cooling water). Detachable command console and modern interfaces allow remote operation and integration into laboratory or production systems.

Features

• Circulating thermostat with microprocessor control and integrated cooling system
• Operation via cursor keys and softkeys; detachable control console for remote use
• Stainless steel insulated bath with overflow and drain
• LAUDA Varioflex pressure/suction pump with 8 selectable levels; rear connections
• Low filling volume for fast temperature changes
• Hybrid SmartCool system for energy-efficient digital cooling management
• Fully electronic PID controller for internal and external control
• Integrated programmer (1 program, up to 20 segments) and SelfCheck diagnostic assistant
• USB and Ethernet interfaces standard; retrofittable fieldbus options (RS232/485, Profibus, EtherCAT)
• Low-level and adjustable over-temperature protection with acoustic alarm; suitable for flammable and non-flammable liquids

Working range

• Min. working temperature: -45 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Cooling capacity (selected values, 50 Hz, ethanol)

• 20 °C — Pump level 8 — Cooling capacity: 0.8 kW
• 10 °C — Pump level 8 — Cooling capacity: 0.8 kW
• 0 °C — Pump level 8 — Cooling capacity: 0.8 kW
• -10 °C — Pump level 8 — Cooling capacity: 0.53 kW
• -20 °C — Pump level 4 — Cooling capacity: 0.34 kW
• -30 °C — Pump level 4 — Cooling capacity: 0.15 kW
• -35 °C — Pump level 4 — Cooling capacity: 0.09 kW
• -40 °C — Pump level 4 — Cooling capacity: 0.04 kW
• -45 °C — Pump level 2 — Cooling capacity: 0.01 kW

Technical data (according to DIN 12876)

• Working temperature range: -45 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 2.5 kW
• Max. power consumption: 3.7 kW; Current consumption: 16 A
• Max. discharge pressure: 0.7 bar; Pump suction max.: 0.4 bar
• Max. pump flow: 22 L/min
• Inlet/Outlet thread (outside): M16 x 1; Olive Ø: 13 mm
• Filling volume: min. 2.4 L / max. 4.4 L
• Dimensions (WxDxH): 300 x 430 x 675 mm; Weight: 39 kg
• Power supply (shown variant): 230 V; 50 Hz; power cord with angled plug (CEE7/7)

Specifications

• Model: PRO RP 245 E
• Working temperature range: -45 ... 200 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 2.5 kW
• Cooling capacity (example at 20 °C, pump level 8, ethanol): 0.8 kW
• Max. pump flow: 22 L/min
• Filling volume: 2.4–4.4 L
• Dimensions (WxDxH): 300 x 430 x 675 mm
• Weight: 39 kg
• Power supply (variant shown): 230 V; 50 Hz
