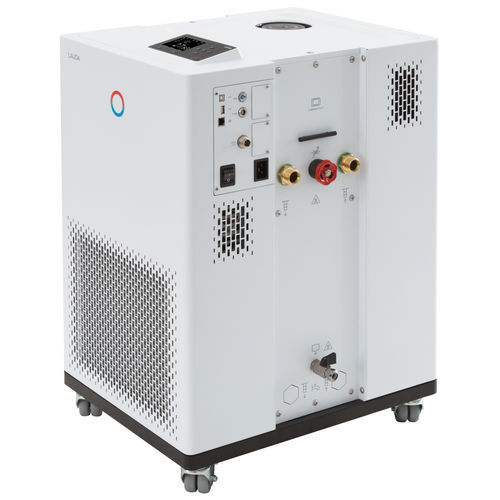

Laboratory thermostat Integral IN 230 T

processon casterselectronic

Product description
The LAUDA Integral IN 230 T is a process thermostat designed for precise external temperature control and flexible integration into industrial processes. Its modular interface concept enables easy addition of communication modules (Ethernet, USB, Pt100 standard; RS232/485, Profibus, analogue, contact or EtherCAT optional). The unit combines powerful heating and cooling with a compact internal volume, fast response, and an integrated refrigeration system for dynamic temperature management.

Features

• Process thermostat with integrated cooling for dynamic temperature control of external circuits
• Management of heat transfer liquids with stored properties
• Fully electronic continuous controller with PID action for internal and external control
• Adjustable low-level and over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• Port for external Pt100 integrated; second external Pt100 via module possible
• Programmer with up to 150 temperature/time segments, separable into 5 programs
• Integrated web server for browser-based operation (PC, tablet, smartphone) with authentication and encryption
• Compliant refrigerant management according to (EU) 573/2024
• Coloured TFT display for simultaneous actual & set values and temperature profile graphics
• Easy input via cursor and soft keys; additional Tmax key for overtemperature protection
• Self-adapt function for automatic tuning of control parameters
• High-performance pressure pump with digital pressure display
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• SmartCool energy-saving digital cooling management with compressor on/off control
• Clear-text menu navigation in six selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to use maximum available power from the supply
• USB and Ethernet interfaces as standard; option for up to 2 additional interface modules
• Condenser cooling: air

Working range
Min. working temperature: -32 °C
Max. working temperature: 120 °C
Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: -32 ... 120 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 2.7 kW
Max. power consumption: 3.7 kW
Current consumption: 16 A
Max. discharge pressure: 3.5 bar
Max. pump flow: 40 L/min
In/Outlet connection thread (outside): G 3/4"
Inlet/outlet hose size: 3/4"
Min. filling volume: 3.6 L
Max. filling volume: 8.7 L
Dimensions (WxDxH): 430 x 550 x 760 mm
Weight: 84 kg
Noise level: 63 dB(A)
Power supply: 230 V; 50 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz)
100 °C — Thermal oil — 2.2 kW
20 °C — Ethanol — 2.2 kW
10 °C — Ethanol — 1.9 kW
0 °C — Ethanol — 1.5 kW
-10 °C — Ethanol — 1.0 kW
-20 °C — Ethanol — 0.6 kW
-30 °C — Ethanol — 0.15 kW

Downloads
Data sheet and product documentation (datasheet / operating instructions / brochures) are available for this model.

Specifications

• Model family: Integral IN
• Working temperature range: -32 °C to 120 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 2.7 kW
• Max. pump flow: 40 L/min
• Filling volume: min. 3.6 L — max. 8.7 L
• Dimensions (WxDxH): 430 x 550 x 760 mm
• Weight: 84 kg
• Power supply / plug (example variant): 230 V; 50 Hz — Power cord with angled plug (CEE7/7)
