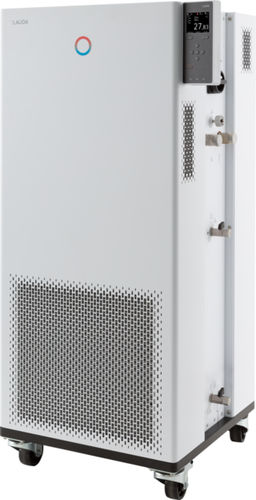

Process thermostat Integral IN 530 TW

floor-standingdigitalelectronic

Product overview The Integral IN 530 TW is a process thermostat with integrated cooling designed for dynamic temperature control of external circuits. Equipped with modular interfaces and advanced control functions, it supports a wide working range and various tempering media.

Key features

• Process thermostat with integrated cooling system and powerful pressure pump
• Stored media profiles for management of heat transfer liquids
• Fully electronic continuous PID controller for internal and external control
• Adjustable low-level and over-temperature protection with acoustic alarm
• External Pt100 port; second external Pt100 via interface module possible
• Programmer: 150 temperature/time segments split into up to 5 programs
• Integrated web server for browser operation (PC, tablet, smartphone) with authentication and encryption
• Compliance with F-gas regulation (EU) 573/2024 using permitted HFC refrigerants
• Coloured TFT display showing actual and set values with graphical temperature profile
• Cursor and soft-key input, additional Tmax key for overtemperature protection
• Self-adapt function for automatic control parameter determination
• Remote fault indication via floating contact and adjustable bypass for pressure limiting
• SmartCool digital cooling management with compressor on/off for energy efficiency
• Clear-text menu navigation in six selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck Assistant for system diagnosis and PowerAdapt for optimal heat usage
• USB and Ethernet as standard; upgradable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Digital pump pressure display and water-cooled condenser

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 120 °C
• Temperature stability: ±0.05 K

Cooling capacity

• 100 °C | Thermal oil | 6 kW (50/60 Hz)
• 20 °C | Ethanol | 6 kW (50/60 Hz)
• 10 °C | Ethanol | 5.5 kW (50/60 Hz)
• 0 °C | Ethanol | 4.5 kW (50/60 Hz)
• -10 °C | Ethanol | 3 kW (50/60 Hz)
• -20 °C | Ethanol | 1.6 kW (50/60 Hz)
• -30 °C | Ethanol | 0.7 kW (50/60 Hz)

Cooling system / hydraulic

• Max. discharge pressure: 3.5 bar (50 Hz), 4.6 bar (60 Hz)
• Max. pump flow: 40 L/min (50 Hz); 65 L/min (60 Hz)
• Inlet/outlet connection thread (outside): G 3/4"
• Hose size inlet/outlet: 3/4"
• Min. filling volume: 7.2 L
• Max. filling volume: 20.5 L

Technical specifications

• Working temperature range: -32 … 120 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: ±0.05 K
• Heater power max.: 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C (max 30 °C)
• Cooling water flow rate: 14.5 L/min
• Pressure difference cooling water min.: 0.8 bar; max: 10 bar
• Dimensions (W×D×H): 560 × 550 × 1325 mm
• Weight: 150 kg
• Noise level: 62 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: IEC 60309, 5-pole, CEE, red, 16 A

Datasheet & downloads Datasheet for the Integral IN 530 TW is available in the downloads section.
