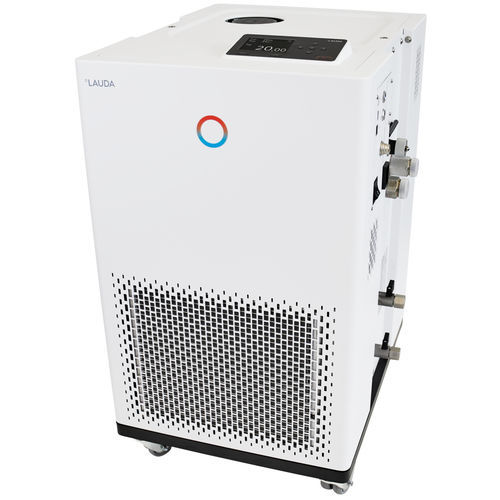

Process thermostat Integral IN 150 XT

on castersdigitalelectronic

Overview
Operate the Integral IN 150 XT process thermostat via the device's colour TFT display or optionally with an intuitive touch control unit. The unit integrates cooling, pump control and network operation for industrial temperature-conditioning tasks.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat-transfer media with stored material data
• Fully electronic continuous PID controller for internal and external control
• Low-level and adjustable over-temperature protection with audible alarm suitable for flammable and non-flammable liquids
• Integrated port for external Pt100; second external Pt100 possible via interface module
• Adjustable bypass and bypass limiter
• Very small internal volume and large non-thermostated expansion vessel (cold-fluid layering)
• Condenser cooled by air
• Colour TFT for simultaneous display of actual and set values and graphical temperature profile
• Input via cursor and soft keys; additional Tmax key for overtemperature
• Self-adapt function for automatic determination of control parameters
• LAUDA Variopump (pressure pump) with 8 selectable output levels or outflow pressure control
• Remote fault indication via floating contact
• Programmer with 150 temperature/time segments split into up to 5 programs
• Integrated web server for browser-based operation (PC/tablet/smartphone) with authentication and encryption
• Operates with traditional refrigerants (HFC) in compliance with EU Reg. 573/2024
• Clear-text menu navigation in selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to optimize available heating power
• USB and Ethernet interfaces standard; expandable with up to 2 additional interface modules (RS232/485, Profibus, analog, contact, EtherCAT)
• Digital pump pressure display and SmartCool energy-saving digital cooling management

Working range
Min. working temperature: -45 °C
Max. working temperature: 220 °C
Temperature stability: 0.05 ± K

Cooling capacity (50 Hz)
200 °C | Pump level 8 | Thermal oil | 1.5 kW
100 °C | Pump level 8 | Thermal oil | 1.5 kW
20 °C | Pump level 8 | Ethanol | 1.5 kW
10 °C | Pump level 8 | Ethanol | 1.5 kW
0 °C | Pump level 8 | Ethanol | 1.3 kW
-10 °C | Pump level 8 | Ethanol | 1.0 kW
-20 °C | Pump level 4 | Ethanol | 0.7 kW
-30 °C | Pump level 4 | Ethanol | 0.3 kW
-40 °C | Pump level 4 | Ethanol | 0.06 kW
-45 °C | Pump level 2 | Ethanol | 0.02 kW

Technical data

• Model: Integral IN 150 XT
• Working temperature range: -45 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 3.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow (pressure): 65 L/min
• In/outlet connection thread (outside): M30 x 1.5
• Hose size in/outlet: 3/4"
• Min/Max filling volume: 2.5 L / 8.7 L
• Dimensions (W x D x H): 430 x 550 x 760 mm
• Weight: 106 kg
• Noise level: 60 dB(A)
• Power supply (example variant shown): 230 V; 50 Hz
• Power plug (example variant shown): Power cord with angled plug (CEE7/7)
• Product reference: L002673
