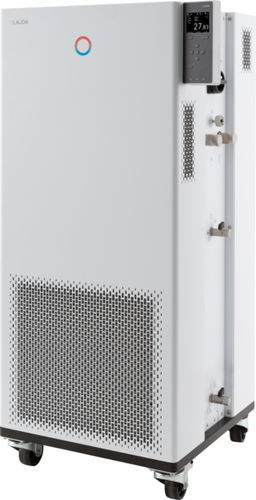

Laboratory thermostat Integral IN 530 T

processon castersdigital

Short description
With the modular interface concept, the Integral process thermostat IN 530 T integrates into industrial processes with flexible connectivity. Standard interfaces include Ethernet, USB and an external Pt 100 port; additional interfaces and communication protocols can be added via modules.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer liquids with stored media properties
• Fully electronic continuous controller with PID action for internal and external control
• Adjustable low-level and over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• Port for external Pt 100 sensor; second external Pt 100 feasible via interface module
• Programmer with 150 temperature/time segments, separable into 5 programs
• Integrated web server for browser-based operation on PC, tablet or smartphone; secure transfer via authentication and encryption
• Utilises traditional refrigerants (HFCs) in accordance with EU Regulation 573/2024 on F-gases
• Colour TFT display showing actual and set values and a graphical temperature profile
• Input via cursor and soft keys; dedicated Tmax key for overtemperature protection
• Self-adapt function to determine control parameters
• High-performance pressure pump
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• SmartCool system for digital cooling management including compressor on/off control
• Clear-text menu navigation, six selectable languages: DE, EN, FR, ES, IT, RU
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to use the maximum allowable heat from the power supply
• USB and Ethernet interfaces equipped as standard; option to add up to 2 additional interfaces (RS232/485, Profibus, analogue, contact or EtherCAT module)
• Digital display of pump pressure
• Condenser cooling: Air

Working range
Min. working temperature: -32 °C
Max. working temperature: 120 °C
Temperature stability: 0.05 ± K

Cooling capacity (excerpt)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
100 °C | Thermal oil | 5 kW | 5 kW
20 °C | Ethanol | 5 kW | 5 kW
10 °C | Ethanol | 4.5 kW | 4.5 kW
0 °C | Ethanol | 3.8 kW | 3.8 kW
-10 °C | Ethanol | 2.6 kW | 2.6 kW
-20 °C | Ethanol | 1.5 kW | 1.5 kW
-30 °C | Ethanol | 0.6 kW | 0.6 kW

Technical specifications

• Working temperature range: -32 ... 120 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.5 bar (50 Hz), 4.6 bar (60 Hz)
• Max. pump flow pressure: 40 L/min (50 Hz); 65 L/min (60 Hz)
• Inlet/outlet connection thread (outside): G 3/4"
• Inlet/outlet hose size: 3/4"
• Min. filling volume: 7.2 L
• Max. filling volume: 20.5 L
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 149 kg
• Noise level: 66 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A) or variant plugs per configuration
