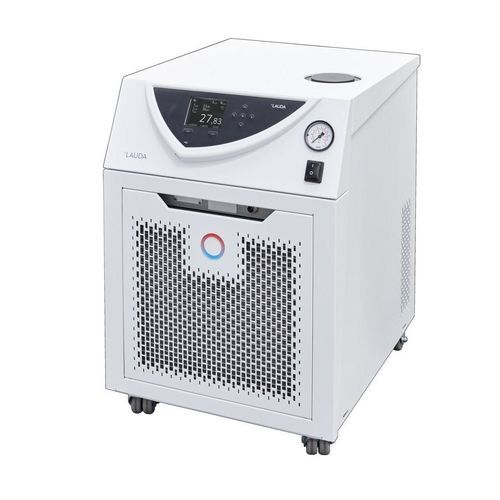

Process thermostat Variocool VC 1200

on casterscompactdigital

Product description
Compact process thermostat Variocool VC 1200 designed for precise temperature control of non-flammable heat transfer fluids in industrial applications. Available in air- or water-cooled versions (W) and fitted with steerable fixed castors for easy positioning. Sound insulation or outdoor installation is available for larger tower units from the VC 5000 range.

Features

• Process thermostat suitable for use with non-flammable heat transfer liquids (water, water/glycol, ethanol)
• Intuitive input via cursor and soft keys with coloured TFT display for simultaneous indication of actual & set values and graphical temperature profile
• Powerful pressure pump with max. flow 37 L/min and adjustable bypass for pressure limiting
• Upgradeable with interface modules (analogue module, contact module, RS232/485 module, Profibus, Ethernet-USB module)
• Top filler opening and rear drain tap for straightforward maintenance
• Condenser cooling: Air (water-cooled version available as option)
• Fully electronic continuous controller with PID action and integrated programmer (max. 150 segments, splittable into 5 programmes)
• SmartCool system for energy-saving digital cooling management including compressor on/off control
• USB interface as standard; remote fault indication via floating contact
• Electronic level indication and low-level alarm for safe operation
• Utilises traditional refrigerants (HFCs) in accordance with European regulation (EU) 573/2024 on F-gases

Working range
Min. working temperature: -20 °C
Max. working temperature: 80 °C
Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) — tempering medium: Ethanol
20 °C — 1.12 kW
10 °C — 0.92 kW
0 °C — 0.62 kW
-10 °C — 0.32 kW
-20 °C — 0.06 kW

Technical specifications

• Working temperature range: -20 ... 80 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.25 kW
• Max. power consumption: 3.3 kW
• Current consumption: 14 A
• Max. discharge pressure: 3.2 bar
• Max. pump flow: 37 L/min
• In / Outlet connection thread (outside): G 3/4"
• Pressure adjustment: bypass
• Min. filling volume: 8 L
• Max. filling volume: 15 L
• Dimensions (WxDxH): 450 x 550 x 790 mm
• Weight: 51 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
