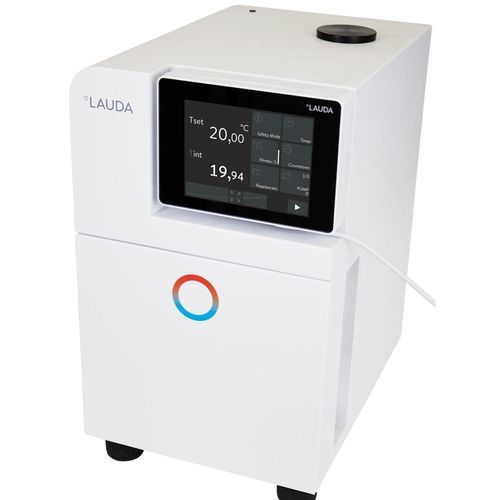

Process thermostat PRO P 2 EC

benchtopcompactdigital

Product description
The LAUDA PRO P 2 EC is a compact circulation and process thermostat designed for external applications up to 250 °C. Low filling volumes allow rapid temperature changes while the integrated cooling coil and hybrid cooling option (air or water) expand the application range.

Features

• Thermostatic circulator with microprocessor control and installed cooling coil
• Detachable command console for remote operation
• Timer and countdown functions; SelfCheck Assistant for system diagnostics
• Fully electronic continuous controller with PID for internal and external control
• Tower design with small footprint and stainless steel bath vessel (insulated, overflow, drain tap)
• 5.7" multi-touch color display and EasyUse operation system
• LAUDA Varioflex pressure/suction pump with 8 selectable levels; rear connections
• USB and Ethernet interfaces; data import/export via USB
• Low filling volume (2.4–4.4 L) for fast thermal response
• Adjustable over-temperature protection and acoustic alarm for flammable and non-flammable liquids
• Retrofittable interfaces (RS232/485, Profibus, EtherCAT, analogue/contact modules)
• Programmer: up to 100 programs, up to 50 segments each

Working range
Min. working temperature: 80 °C
Max. working temperature: 250 °C
Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: 80 ... 250 °C
Working range with water cooling: 20 ... 250 °C
Operating temperature range: -30 ... 250 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 2.5 kW
Max. power consumption: 2.7 kW
Current consumption: 12 A
Max. discharge pressure: 0.7 bar
Max. pump suction: 0.4 bar
Max. pump flow: 22 L/min
In/out connection thread (outside): M16 x 1
In/out Ø olives: 13 mm
Filling volume: min. 2.4 L / max. 4.4 L
Dimensions (WxDxH): 250 x 365 x 425 mm
Weight: 17 kg
Power supply: 200-230 V; 50/60 Hz; angled plug (CEE7/7)

Downloads
Data sheet PRO P 2 EC available (see product documents).

Technical specifications

• Brand: LAUDA
• Model: PRO P 2 EC
• Working temperature range: 80 ... 250 °C (20 ... 250 °C with water cooling)
• Temperature stability: 0.05 ± K
• Heater power: 2.5 kW
• Filling volume: min. 2.4 L / max. 4.4 L
• Pump performance: up to 22 L/min, pressure/suction pump (LAUDA Varioflex) with 8 levels
• Connections: M16 x 1, Ø 13 mm olives
• Dimensions (WxDxH): 250 x 365 x 425 mm
• Weight: 17 kg
• Power supply: 200-230 V; 50/60 Hz; angled plug (CEE7/7)
