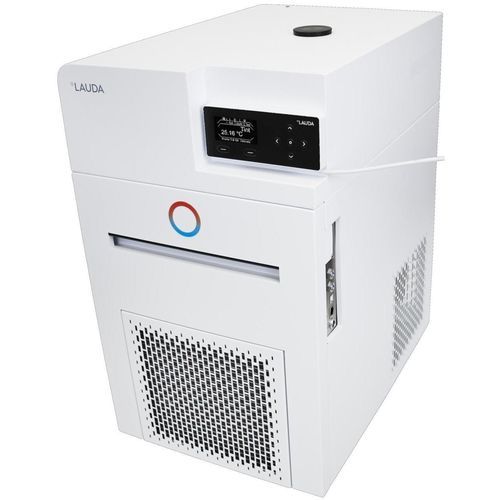

Process thermostat PRO RP 290 E

compactdigitalelectronic

Overview
The PRO RP 290 E circulation and process thermostat is designed for external industrial applications requiring rapid thermal response and flexible cooling. Compact tower design with low filling volume enables fast heating/cooling cycles. Integrated hybrid cooling (air and water) and a pressure-suction pump are fitted as standard.

Features

• Microprocessor-controlled thermostatic circulator with integrated cooling system
• Operation via cursor and softkeys; detachable command console for remote use
• Stainless steel bath vessel (insulated, with overflow and drain tap)
• Retrofittable interfaces: RS‑232/485, Profibus, EtherCAT, analogue or contact modules
• Adjustable low-level and over-temperature protection with acoustic alarm for use with flammable and non‑flammable liquids
• Uses natural refrigerants and low filling volumes for fast thermal response
• Bright high-contrast OLED display and EasyUse system for simplified operation
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels; rear connections
• Fully electronic continuous controller with PID action for internal and external control
• SmartCool digital cooling management with compressor on/off control for energy efficiency
• Integrated programmer: 1 programme with up to 20 segments; SelfCheck Assistant for diagnostics
• USB and Ethernet interfaces; PowerAdapt system to maximize available power usage

Working range
Min. working temperature: -90 °C
Max. working temperature: 200 °C
Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) — table
20 °C | Pump level 8 | Ethanol | 0.8 kW
10 °C | Pump level 8 | Ethanol | 0.77 kW
0 °C | Pump level 8 | Ethanol | 0.74 kW
-10 °C | Pump level 8 | Ethanol | 0.72 kW
-20 °C | Pump level 4 | Ethanol | 0.7 kW
-30 °C | Pump level 4 | Ethanol | 0.68 kW
-40 °C | Pump level 4 | Ethanol | 0.64 kW
-50 °C | Pump level 4 | Ethanol | 0.56 kW
-60 °C | Pump level 4 | Ethanol | 0.39 kW
-70 °C | Pump level 4 | Ethanol | 0.21 kW
-80 °C | Pump level 4 | Ethanol | 0.09 kW
-90 °C | Pump level 2 | Ethanol | 0.01 kW

Notes
Device uses natural refrigerants. Low filling volume ensures fast thermal response. Pressure-suction pump fitted as standard. Hybrid cooling (air and water) available.

Technical specifications

• Working temperature range: -90 ... 200 °C
• Operating temperature range: -90 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.7 bar
• Max. pump suction: 0.4 bar
• Max. pump flow: 22 L/min
• In/Outlet connection thread (outside): M16 x 1
• In/Outlet Ø olives: 13 mm
• Min. filling volume: 2.4 L
• Max. filling volume: 4.4 L
• Dimensions (WxDxH): 390 x 600 x 685 mm
• Weight: 77 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
