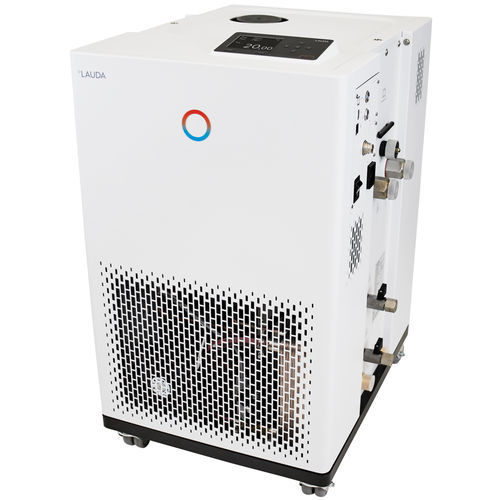

Laboratory thermostat Integral IN 250 XTW

processon castersdigital

Product overview
Operate the Integral IN 250 XTW process thermostat via the built-in coloured TFT display or optionally via an intuitive touch operating unit. Designed for dynamic temperature control of external circuits, it integrates cooling, PID regulation and industrial networking for process automation.

Key features

• Integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer fluids with stored fluid properties
• Fully electronic continuous PID controller for internal and external control
• Low-level and adjustable over-temperature protection with acoustic alarm; suitable for flammable and non-flammable liquids
• Port for external Pt100 integrated; second external Pt100 possible via interface module
• Adjustable bypass and LAUDA Variopump (8 selectable output levels) with pressure control
• Embedded web server, USB and Ethernet interfaces as standard for remote operation and data export
• SmartCool energy-saving cooling management and SelfCheck assistant for diagnostics

Working range

• Min. working temperature: -45 °C
• Max. working temperature: 220 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) — examples

• 200 °C | pump level 8 | thermal oil: 2.2 kW
• 100 °C | pump level 8 | thermal oil: 2.2 kW
• 20 °C | pump level 8 | ethanol: 2.1 kW
• -20 °C | pump level 4 | ethanol: 1.0 kW
• -45 °C | pump level 2 | ethanol: 0.05 kW

Technical data

• Heater power max.: 3.5 kW
• Max. power consumption: 3.7 kW — Current: 16 A
• Max. discharge pressure: 3.1 bar — Pump flow (max): 65 L/min
• Connections: M30 x 1.5 (in/out) — Hose size: 3/4″
• Filling volume: min. 2.5 L — max. 8.7 L
• Cooling water: recommended 15 °C — max 30 °C, flow 4.2 L/min, max pressure 10 bar
• Dimensions (WxDxH): 430 x 550 x 760 mm — Weight: 106 kg — Noise level: 57 dB(A)
• Standard interfaces: USB, Ethernet; optional interfaces: RS232/485, Profibus, analogue, contact, EtherCAT
• Power supply (example variant): 230 V; 50 Hz — Power cord with angled plug (CEE7/7)
