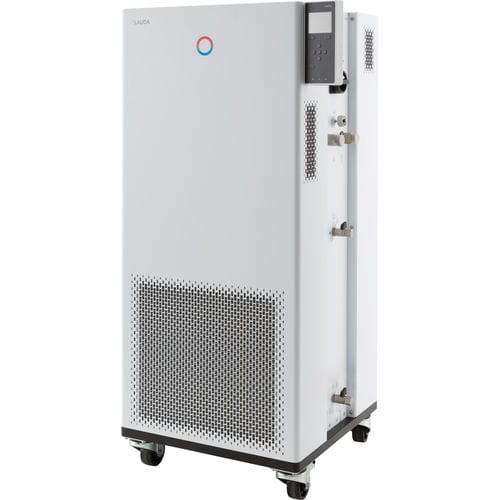

Process thermostat Integral IN 750 XT

floor-standingdigitalelectronic

Product overview
Operate the Integral process thermostat via the integrated colour TFT display or optionally via an intuitive touch operating unit with extended functions.

Key features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer fluids with stored fluid properties
• Fully electronic continuous PID controller for internal and external control
• Low-level protection and adjustable overtemperature protection with acoustic alarm
• External Pt100 port (second Pt100 optional via interface module)
• Adjustable integrated bypass and small internal volume with large non-thermostated expansion vessel
• LAUDA Variopump with 8 selectable output levels and digital pump pressure display
• Programmer with 150 temperature/time segments, up to 5 programs
• Integrated web server, USB and Ethernet interfaces; optional RS232/485, Profibus, analogue, contact, EtherCAT modules
• SmartCool energy-saving digital cooling management and PowerAdapt system

Working range

• Minimum working temperature: -45 °C
• Maximum working temperature: 220 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: -45 ... 220 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 8 kW
Max. power consumption: 11 kW
Current consumption: 16 A
Max. discharge pressure: 3.1 bar
Max. pump flow: 65 L/min
In/Outlet thread (outside): M30 x 1,5
Inlet/outlet hose size: 3/4"
Min. filling volume: 4.8 L
Max. filling volume: 17.2 L
Dimensions (WxDxH): 560 x 550 x 1325 mm
Weight: 176 kg
Noise level: 68 dB(A)
Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
Power plug: Power cord with plug (NEMA L16-20P twist lock; 20 A)
Certification: NRTL according to UL 1995:2018, CSA C22.2 no. 236-15 Ed.5th

Cooling capacity (examples)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
200 °C | 8 | Thermal oil | 7 kW | 7 kW
100 °C | 8 | Thermal oil | 7 kW | 7 kW
20 °C | 8 | Ethanol | 7 kW | 7 kW
10 °C | 8 | Ethanol | 7 kW | 7 kW
0 °C | 8 | Ethanol | 5.4 kW | 5.4 kW
-10 °C | 8 | Ethanol | 3.6 kW | 3.6 kW
-20 °C | 4 | Ethanol | 2.6 kW | 2.6 kW
-30 °C | 4 | Ethanol | 1.6 kW | 1.6 kW
-40 °C | 4 | Ethanol | 0.8 kW | 0.8 kW
-45 °C | 2 | Ethanol | 0.5 kW | 0.5 kW

Technical specifications

• Model: Integral IN 750 XT
• Temperature range: -45 ... 220 °C
• Temperature stability: 0.05 ± K
• Heating power: up to 8 kW
• Cooling capacity (example): up to 7 kW (depends on medium and temperature)
• Pump: LAUDA Variopump with selectable levels, digital pump pressure display
• Filling volume: min. 4.8 L / max. 17.2 L
• Flow connections: M30 x 1,5 / 3/4" hose
• Dimensions / weight: 560 x 550 x 1325 mm / 176 kg
• Interfaces: USB, Ethernet standard; optional RS232/485, Profibus, analogue, contact, EtherCAT
