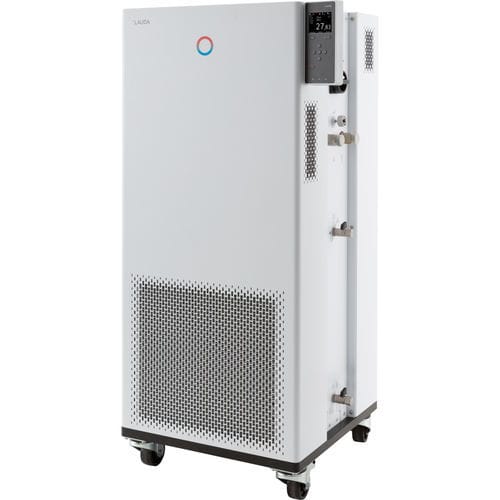

Laboratory thermostat Integral IN 280 XTW

for scientific researchprocesson casters

Overview
The Integral IN 280 XTW is a circulation process thermostat with integrated cooling designed for dynamic temperature control of external circuits and heat-transfer media. Operation is via a coloured TFT display on the unit or an optional touch operating unit; network control is available via built-in web server and standard interfaces.

Key features

• Process thermostat with integrated cooling system for dynamic control of external circuits
• Management of heat-transfer fluids with stored media properties
• Fully electronic continuous PID controller for internal and external regulation
• Low-level and adjustable over-temperature protection with acoustic alarm suitable for flammable and non-flammable liquids
• External Pt100 port; second Pt100 possible via interface module
• Integrated and adjustable bypass
• Integrated web server for browser-based operation (authentication and encryption)
• Condenser cooling: water
• Coloured TFT display shows actual and set values and graphical temperature profile
• Cursor and soft-key input; dedicated Tmax key for overtemperature protection
• Self-adapt function for automatic tuning of control parameters
• LAUDA Variopump (digital pressure pump) with 8 selectable output levels or outflow pressure control
• Remote fault indication via floating contact
• Programmer with up to 150 temperature/time segments split into 5 programs
• Very small internal volume and large non-thermostated expansion vessel (cold fluid layer system)
• Uses traditional refrigerants (HFCs) in accordance with EU regulation (F-gases) 573/2024
• Clear-text menu navigation, six selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to optimize use of available supply power
• USB and Ethernet interfaces standard; options for up to 2 additional interfaces (RS232/485, Profibus, analogue, contact or EtherCAT)
• Digital display of pump pressure
• SmartCool system for energy-saving digital cooling management including compressor on/off control

Working range

• Min. working temperature: -80 °C
• Max. working temperature: 220 °C
• Temperature stability: ±0.05 K

Technical data (according to DIN 12876)

• Working temperature range: -80 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 4 kW
• Max. power consumption: 9 kW
• Current consumption: 13.5 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow: 65 L/min
• In/Outlet connection thread (outside): M30 x 1.5
• Min. filling volume: 4.8 L
• Max. filling volume: 17.2 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C
• Cooling water temperature max.: 30 °C
• Cooling water flow rate: 2.7 L/min
• Pressure difference cooling water min.: 0.8 bar
• Maximum cooling water pressure: 10 bar
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 195 kg
• Noise level: 62 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pole, CEE, red, 16 A)

Cooling capacity (selected values)

• 200 °C | Pump level 8 | Thermal oil | Cooling capacity 50/60 Hz: 1.7 kW
• 100 °C | Pump level 8 | Thermal oil | 1.7 kW
• 20 °C | Pump level 8 | Ethanol | 1.7 kW
• 0 °C | Pump level 8 | Ethanol | 1.6 kW
• -40 °C | Pump level 4 | Ethanol | 1.8 kW
• -80 °C | Pump level 2 | Ethanol | 0.18 kW

Ordering information / specifications

• Model: Integral IN 280 XTW
• Device category: Circulation and process thermostat with integrated cooling
• Working temperature: -80 ... 220 °C
• Temperature stability: 0.05 ± K
• Pump flow: up to 65 L/min (digital pump, 8 levels)
• Filling volume: 4.8 - 17.2 L
• Max. discharge pressure: 3.1 bar
• Power supply / plug: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz / IEC 60309, 5-pole, CEE, 16 A
• Weight / Dimensions: 195 kg / 560 x 550 x 1325 mm
