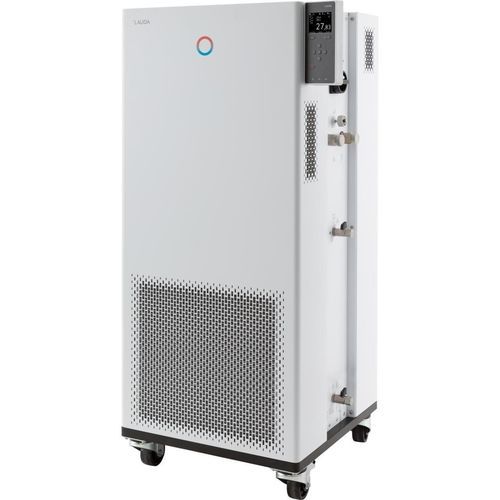

Process thermostat Integral IN 950 XTW

on castersdigitalelectronic

Overview
The Integral IN 950 XTW is a process thermostat combining integrated refrigeration and heating for dynamic temperature control of external circuits. Operation is via the device's colour TFT display or optionally via a touch operating unit with extended functions. The unit supports management of heat transfer fluids and includes ATEX gas-warning sensors for use in potentially explosive atmospheres.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer liquids with stored fluid properties
• ATEX-certified gas-warning sensors with alarm, automatic shutdown and external status interface
• Self adapt function to determine control parameters
• LAUDA Variopump pressure pump with 8 selectable output levels or outflow pressure control
• Remote fault indication via floating contact
• Integrated web server for browser operation (PC, tablet, smartphone) with authentication and encryption
• Very small internal volume and large non-thermostated expansion vessel (cold fluid layer system)
• Use of natural refrigerants
• Colour TFT display showing actual and set values with graphical temperature profile
• Easy input via cursor and soft keys; dedicated Tmax key for overtemperature protection
• Quick-stop via black push-button and remote release contacts
• PowerAdapt system to use the maximum permissible heat given the power supply
• USB and Ethernet interfaces as standard; option for up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Integrated adjustable bypass
• SmartCool digital cooling management with compressor on/off for energy saving
• Clear text menu navigation, six selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck Assistant for system diagnosis
• Fully electronic continuous PID controller for internal and external control
• Adjustable low-level and over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• Port for external Pt100; second external Pt100 feasible via interface module
• Programmer with 150 temperature/time segments separable into 5 programs
• Digital display of pump pressure
• Condenser cooling: Water

Cooling capacity (50 Hz)
200 °C | Pump level 8 | Thermal oil | 9 kW
100 °C | Pump level 8 | Thermal oil | 9 kW
20 °C | Pump level 8 | Ethanol | 9 kW
10 °C | Pump level 8 | Ethanol | 7.8 kW
0 °C | Pump level 8 | Ethanol | 5.8 kW
-10 °C | Pump level 8 | Ethanol | 4.2 kW
-20 °C | Pump level 4 | Ethanol | 3 kW
-30 °C | Pump level 4 | Ethanol | 1.9 kW
-40 °C | Pump level 4 | Ethanol | 0.95 kW
-50 °C | Pump level 2 | Ethanol | 0.5 kW

Working range
Min. working temperature: -50 °C
Max. working temperature: 220 °C
Temperature stability: 0.05 ± K

Technical features summary
The unit integrates refrigeration and heating, pump pressure control with selectable pump levels, ATEX gas-warning sensors, an embedded web server and a modern TFT user interface. Standard connectivity includes USB and Ethernet with optional interface modules. An integrated bypass and SmartCool digital management optimise energy usage.

Technical specifications

• Working temperature range: -50 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow rate: 65 L/min
• Inlet / Outlet connection thread (outside): M30 x 1,5
• Inlet/outlet hose size: 3/4"
• Min. filling volume: 4.8 L
• Max. filling volume: 17.2 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C
• Max. cooling water temperature: 30 °C
• Cooling water flow rate: 20 L/min
• Pressure difference cooling water min.: 0.8 bar
• Maximum pressure cooling water: 10 bar
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 181 kg
• Noise level: 60 dB(A)
• Power supply (example variant shown): 400 V; 3/PE; 50 Hz
• Power plug (example variant shown): Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)
