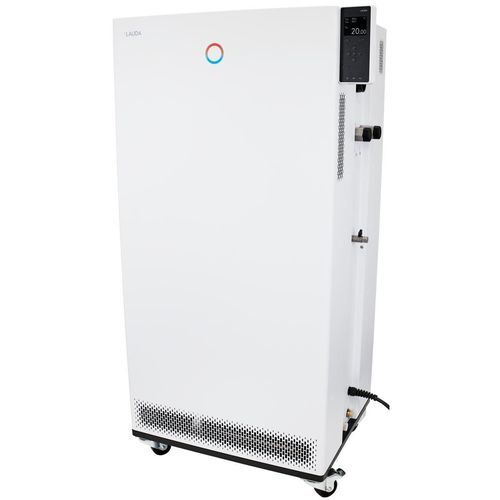

Process thermostat Integral IN 1330 TW

on castersdigitalelectronic

Product description
With the modular interface concept, you can integrate the new Integral process thermostats into your processes with maximum flexibility. The devices are equipped as standard with interfaces such as Ethernet, USB or Pt 100. Additional interfaces and communication protocols can be easily added via modules.

Features

• Process thermostat with integrated cooling system for dynamic temperature control within external circuits
• Management of heat transfer liquids with stored properties
• Fully electronic continuous controller with PID action for internal & external control
• Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• USB and Ethernet interface equipped as standard
• Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
• Digital display of pump pressure
• Condenser cooling: Water
• Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
• Easy input via cursor and soft keys; additional Tmax key for overtemperature protection
• Self adapt function for determination of control parameters
• Extremely powerful pressure pump
• Port for external Pt100 integrated; second external Pt100 feasible via interface module
• Programmer with 150 temperature/time segments that can be separated into 5 programs
• Integrated web server for browser-based operation in local area networks via PC, tablet or smart phone; secure data transfer due to authentication and encryption
• Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
• Clear text menu navigation, six selectable languages: DE, EN, FR, ES, IT, RU
• SelfCheck Assistant for system diagnosis
• PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
• Additional pump for internal circulation
• Remote fault indication through floating contact
• Adjustable bypass for pressure limiting
• SmartCool system for energy-saving digital cooling management including compressor on-off control

Cooling capacity
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
100 °C | Thermal oil | 13 kW | 13 kW
20 °C | Ethanol | 13 kW | 13 kW
10 °C | Ethanol | 10 kW | 10 kW
0 °C | Ethanol | 7.6 kW | 7.6 kW
-10 °C | Ethanol | 5.4 kW | 5.4 kW
-20 °C | Ethanol | 3.4 kW | 3.4 kW
-30 °C | Ethanol | 1.7 kW | 1.7 kW

Working range
Min. working temperature: -32 °C
Max. working temperature: 150 °C
Temperature stability: 0.1 ± K

Caractéristiques / spécifications techniques

• Working temperature range: -32 ... 150 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 16 kW
• Max. power consumption: 18 kW
• Current consumption: 25 A
• Max. discharge pressure: 5,5 bar (50 Hz), 7,0 bar (60 Hz)
• Max. pump flow pressure: 60 L/min (50 Hz); 70 L/min (60 Hz)
• In / Outlet connection thread (outside): M38 x 1,5
• Inlet/outlet hose size: 1″
• Min. filling volume: 9.7 L
• Max. filling volume: 25.5 L
• Water cooling connection thread (outside): 3/4 ″
• Recommended cooling water temperature: 15 °C
• Cooling Water Temperature Max: 30 °C
• Cooling water flow rate: 15.5 L/min
• Pressure difference cooling water min.: 0.8 bar
• Maximum pressure cooling water: 10 bar
• Dimensions (WxDxH): 760 x 650 x 1605 mm
• Weight: 225 kg
• Noise level: 62 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 32 A)
