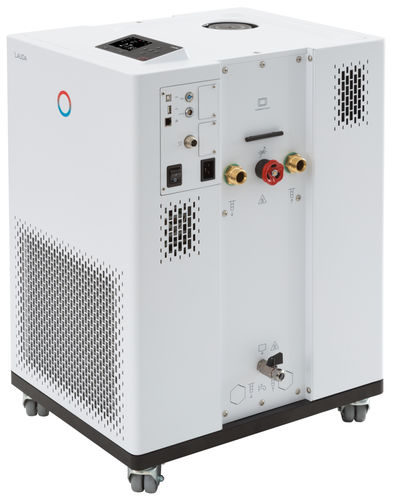

Laboratory thermostat Integral IN 230 TW

processon casterselectronic

Overview
Integral IN 230 TW is a modular process thermostat with integrated cooling for dynamic temperature control of external circulation circuits and heat transfer fluids. The unit combines a fully electronic PID controller, a coloured TFT display and modular communication interfaces (USB and Ethernet standard, Pt100 port integrated).

Key features

• Integrated cooling system for precise control in external circuits
• Management of heat transfer fluids with stored fluid properties
• Fully electronic PID continuous controller with Self adapt function
• Low-level and adjustable over-temperature protection with acoustic alarm
• Programmer with 150 temperature/time segments (up to 5 programs)
• Powerful pressure pump with digital pressure display; max flow 40 L/min, max discharge pressure 3.5 bar
• SmartCool energy-saving cooling management and PowerAdapt for optimized power usage
• Standard USB and Ethernet interfaces; upgradeable with RS232/485, Profibus, analogue, contact or EtherCAT modules
• Integrated web server for browser-based operation with secure authentication and encryption
• Coloured TFT display showing actual and set values plus graphical temperature profile

Working range

• Minimum working temperature: -32 °C
• Maximum working temperature: 120 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range | -32 ... 120 °C
Ambient temperature range | 5 ... 40 °C
Temperature stability | 0.05 ± K
Heater power max. | 2.7 kW
Max. power consumption | 3.7 kW
Current consumption | 16 A
Max. discharge pressure | 3.5 bar
Max. pump flow | 40 L/min
In / Outlet connection thread (outside) | G 3/4
Inlet/outlet hose size | 3/4
Min. filling volume | 3.6 L
Max. filling volume | 8.7 L
Water cooling connection thread (outside) | 3/4
Recommended cooling water temperature | 15 °C
Cooling Water Temperature Max | 30 °C
Cooling water flow rate | 3 L/min
Pressure difference cooling water min. | 0.8 bar
Maximum pressure cooling water | 10 bar
Dimensions (WxDxH) | 430 x 550 x 760 mm
Weight | 85 kg
Noise level | 60 dB(A)
Power supply | 230 V; 50 Hz
Power plug | Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz)
100 °C | Thermal oil | 2.3 kW
20 °C | Ethanol | 2.3 kW
10 °C | Ethanol | 2.3 kW
0 °C | Ethanol | 1.9 kW
-10 °C | Ethanol | 1.3 kW
-20 °C | Ethanol | 0.75 kW
-30 °C | Ethanol | 0.35 kW

Applications

• Temperature control for laboratory and industrial circulation systems
• Material testing, thermal conditioning and process development
• Operation with flammable and non‑flammable heat transfer media using adjustable safety settings

Options & interfaces

• Upgradeable interface modules: RS232/485, Profibus, analogue, contact, EtherCAT
• Second external Pt100 via interface module

Compliance & diagnostics

• Uses traditional HFC refrigerants compliant with EU 573/2024 (F‑gas regulation)
• SelfCheck Assistant for system diagnosis and remote fault contact
• Clear text menu in six selectable languages: DE, EN, FR, ES, IT, RU
