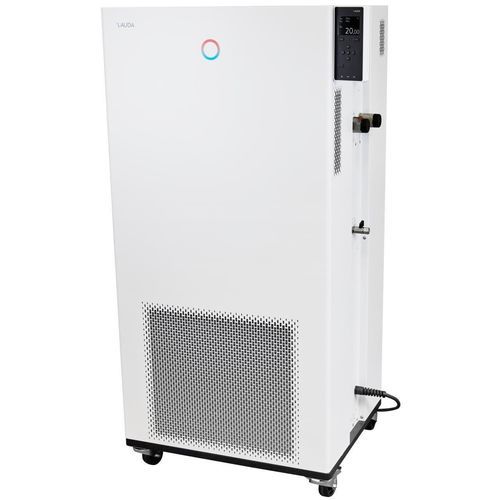

Laboratory thermostat Integral IN 1030 T

processfloor-standingdigital

Product overview
With the modular interface concept, the Integral IN 1030 T process thermostat provides flexible integration into industrial processes. Standard interfaces include Ethernet, USB and an integrated Pt100 input; additional interfaces and communication protocols can be added via option modules.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer fluids with stored properties
• Fully electronic continuous PID controller for internal and external control
• Low-level and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• USB and Ethernet interfaces as standard; upgradable with up to 2 additional modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Digital pump pressure display and extremely powerful pressure pump; optional additional pump for internal circulation
• Air-cooled condenser and SmartCool system for energy-saving digital cooling management with compressor on/off control
• Colour TFT display showing actual and set values and a graphical temperature profile; easy input via cursor and soft keys plus dedicated Tmax key
• Self-adapt function for automatic tuning of control parameters and SelfCheck Assistant for system diagnosis
• Programmer with 150 temperature/time segments that can be split into up to 5 programs
• Uses traditional refrigerants (HFCs) in compliance with EU Regulation 573/2024 on F-gases
• Remote fault indication via floating contact; adjustable bypass for pressure limiting; PowerAdapt system to optimise available power

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 150 °C
• Temperature stability: 0.1 ± K

Cooling capacity
Temperature - Tempering medium - Cooling capacity 50 Hz - Cooling capacity 60 Hz
100 °C - Thermal oil - 11 kW - 11 kW
20 °C - Ethanol - 11 kW - 11 kW
10 °C - Ethanol - 9.5 kW - 9.5 kW
0 °C - Ethanol - 7.1 kW - 7.1 kW
-10 °C - Ethanol - 4.9 kW - 4.9 kW
-20 °C - Ethanol - 3 kW - 3 kW
-30 °C - Ethanol - 1.6 kW - 1.6 kW

Technical specifications

• Working temperature range: -32 ... 150 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Max. discharge pressure: 5.5 bar (50 Hz), 7.0 bar (60 Hz)
• Max. pump flow pressure: 60 L/min (50 Hz); 70 L/min (60 Hz)
• In/Outlet connection thread (outside): M38 x 1.5
• Inlet/outlet hose size: 1"
• Min. filling volume: 9.7 L
• Max. filling volume: 25.5 L
• Dimensions (WxDxH): 760 x 650 x 1605 mm
• Weight: 223 kg
• Noise level: 70 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)
