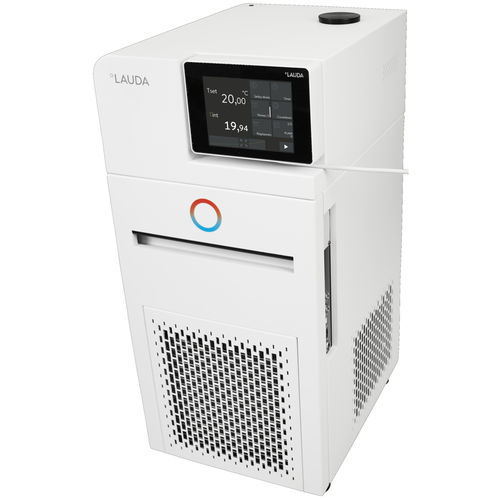

Laboratory thermostat PRO RP 240 EC

for scientific researchprocesscompact

Product overview
The PRO RP 240 EC thermostatic circulator provides precise temperature control for external applications from -40 °C to 200 °C. Compact design, low filling volume (2.4–4.4 L) and hybrid cooling allow rapid temperature changes while keeping installation footprint small. Integrated pressure/suction pump and advanced control systems suit demanding industrial and laboratory tempering tasks.

Features

• Thermostatic circulator with microprocessor control and integrated cooling
• EasyUse interface for intuitive operation
• Data import/export via USB; USB and Ethernet interfaces as standard
• SelfCheck Assistant for system diagnostics
• Fully electronic PID controller for internal and external control
• Tower design with small footprint and detachable command console for remote use
• Stainless steel bath vessel (insulated, with overflow and drain)
• Uses natural refrigerants and SmartCool energy-saving management
• Large 5.7" Multi-Touch-Color display and user administration (up to 20 users)
• LAUDA Varioflex pressure/suction pump with 8 selectable levels (rear connections)
• Low-level and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• Retrofittable interfaces (RS232/485, Profibus, EtherCAT, analogue/contact modules)
• Programmer: up to 100 programs, up to 50 segments each
• PowerAdapt system to optimize usable heat according to power supply

Working range

• Min. working temperature: -40 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) - table
20 °C | Pump level 8 | Ethanol | 0.6 kW
10 °C | Pump level 8 | Ethanol | 0.6 kW
0 °C | Pump level 8 | Ethanol | 0.6 kW
-10 °C | Pump level 8 | Ethanol | 0.41 kW
-20 °C | Pump level 4 | Ethanol | 0.24 kW
-30 °C | Pump level 4 | Ethanol | 0.12 kW
-35 °C | Pump level 4 | Ethanol | 0.07 kW
-40 °C | Pump level 2 | Ethanol | 0.02 kW


Technical specifications

• Working temperature range: -40 ... 200 °C
• Operating temperature range: -40 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.7 bar
• Pump suction max.: 0.4 bar
• Max. pump flow (pressure): 22 L/min
• In/Outlet connection thread (outside): M16 x 1
• In/Outlet Ø olives: 13 mm
• Min. filling volume: 2.4 L
• Max. filling volume: 4.4 L
• Dimensions (WxDxH): 300 x 430 x 675 mm
• Weight: 42 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Part number: L000023
