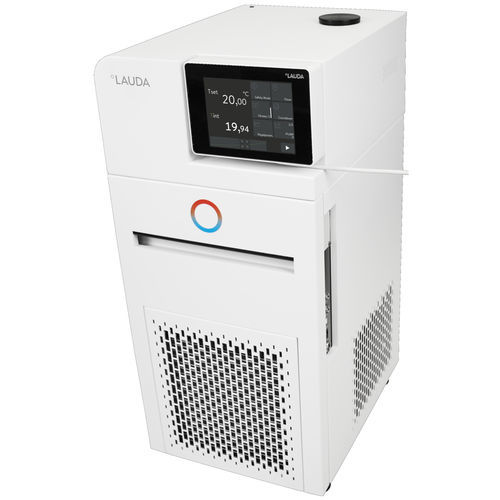

Process thermostat PRO RP 250 EC

compactdigitalelectronic

Product description
The PRO RP 250 EC thermostatic circulation unit provides integrated heating and cooling for external applications with a working range from -50 °C to 200 °C. Its low filling volume enables rapid temperature changes. The compact tower design allows space-saving installation. An integrated cooling coil and hybrid SmartCool refrigeration enable cooling via ambient air or additional cooling water. The unit is equipped with a pressure-suction LAUDA Varioflex pump and a detachable command console for remote operation.

Features

• Thermostatic circulator with microprocessor control and integrated cooling system
• Detachable command console usable as remote control
• Timer and countdown function
• SelfCheck Assistant for system diagnosis
• Fully electronic continuous controller with PID action for internal and external control
• Tower design with small footprint
• Stainless steel bath vessel (insulated, with overflow and drain tap)
• Uses traditional refrigerants (HFCs) in compliance with EU regulation (EU) 573/2024 on F-gases
• Large 5.7" Multi-Touch-Color display
• User administration for up to 20 users
• EasyUse system for simple operation of the unit
• USB and Ethernet interfaces as standard
• PowerAdapt system to optimize available electrical power
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, rear connections
• SmartCool energy-saving digital cooling management including compressor on/off control
• Data import/export via USB
• Low-level and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• Retrofittable interfaces (RS232/485, Profibus, EtherCAT, analogue or contact modules)
• Programmer with up to 100 programs, up to 50 segments each
• Low filling volume for rapid temperature response
• Hybrid cooling system (cooling complemented with cooling water)

Working range

• Min. working temperature: -50 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -50 ... 200 °C
• Operating temperature range: -50 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.7 bar
• Pump suction max.: 0.4 bar
• Max. pump flow: 22 L/min
• In/Outlet connection thread (outside): M16 x 1
• In/Outlet Ø olives: 13 mm
• Min. filling volume: 2.4 L
• Max. filling volume: 4.4 L
• Dimensions (WxDxH): 300 x 430 x 675 mm
• Weight: 48 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz) - tempering medium: Ethanol

• 20 °C | Pump level 8 | 1.5 kW
• 10 °C | Pump level 8 | 1.44 kW
• 0 °C | Pump level 8 | 1.2 kW
• -10 °C | Pump level 8 | 0.84 kW
• -20 °C | Pump level 4 | 0.54 kW
• -30 °C | Pump level 4 | 0.29 kW
• -40 °C | Pump level 4 | 0.11 kW
• -45 °C | Pump level 4 | 0.04 kW
• -50 °C | Pump level 2 | 0.02 kW

Characteristics / technical specifications

• Model: PRO RP 250 EC
• Working temperature range: -50 … 200 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Filling volume min./max.: 2.4 L / 4.4 L
• Pump flow: up to 22 L/min (selectable pump levels)
• Connections: M16 x 1 (outside), 13 mm olives
• Dimensions (WxDxH): 300 x 430 x 675 mm
• Weight: 48 kg
• Power supply / plug: 230 V; 50 Hz / Power cord with angled plug (CEE7/7)
