Arthroscopic surgery knee support AM-KDX-01/1RE

universalsurgicalorthopedic

Scope
POST-OP KNEE BRACE WITH ROM ADJUSTMENT

Product description

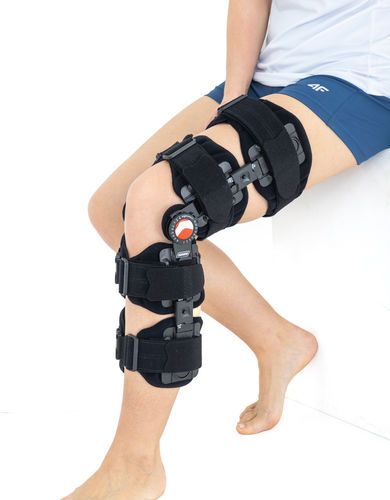

Our universal knee brace 4Scope (AM-KDX-01/1RE) is a lightweight post-operative knee brace designed for immobilization and controlled range-of-motion after knee surgery. It is equipped with monocentric splints providing flexion and extension control. The splints are hot-covered aluminium, anatomically shaped for optimal fit and stabilization. The brace features hinges adjustable from 30° extension to 120° flexion in 15° increments; ROM can be changed easily without tools. Hinges are plastic reinforced with carbon fibers for reduced weight and skin neutrality. The brace fits both legs thanks to telescopic splints and an innovative press-slide system. It includes two thigh and calf straps with anatomic-shaped quick-release buckles and length adjustment to accommodate various limb proportions. An anti-slip silicone system prevents migration. Quick-release buckles retain strap length for repeatable fitting and are operable with one hand.

Materials and technology

• Padding and lining: Active3D™ thermoformed fabric — foamed, closed-cell material; waterproof, sweat-resistant, easy to clean, with external self-gripping layers and thermoformed properties for anatomical shaping.
• Splints: monocentric Splint 1RE (single-axis), aluminium alloy, hot-covered and anatomically shaped; wide ROM adjustment in 15° steps and secured hyperextension settings (-15° and -30°). Angle adjustment is tool-free and includes a safety lock to prevent unauthorized changes.
• Press-slide System: telescopic length adjustment mechanism for splints enabling easy extension/shortening by pressing a button; splints feature a centimeter scale for repeatable settings.
• Paddings: 3D relief supports made of supporting foams or EVA foam to relieve rigid elements and protect skin.

Indications

• Ligament injuries (ACL)
• Knee arthroscopy
• Ligament reconstruction or replacement (ACL)
• Meniscus reconstruction

Replacement items

• 3D pillow set
• Set of straps and buckles

Sizes (Universal size)
(A) Thigh circumference 15 cm above the patella: min 40 cm – max 75 cm (15.7" – 29.5")
(B) Calf circumference 15 cm below the patella: min 30 cm – max 60 cm (11.8" – 23.6")
(C) Distance from knee joint to groin: min 28 cm – max 32 cm (11" – 12.8")
(D) Distance from knee joint to shin: min 28 cm – max 34 cm (11" – 13.6")
Total product length: min 56 cm – max 67 cm (22" – 26.4")

Characteristics / technical specifications

• Brand: 4medic
• Code / Product code: AM-KDX-01/1RE
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: AM-KDX-01/1RE
• Medical device class: Class I medical device
• Main material: Active3D™ thermoformed fabric (waterproof, closed-cell)
• Splints: monocentric aluminium splints, hot-covered, anatomical shape
• Hinges (ROM): adjustable from 30° extension to 120° flexion in 15° increments; tool-free adjustment
• Splint adjustment system: press-slide telescopic system with centimeter scale
• Straps: two thigh and calf straps with anatomic-shaped quick-release buckles; buckles store strap length for repeatable fitting; one-hand opening
• Anti-slip: silicone system to prevent brace slipping
• Size: universal (fits both legs)
• Total length range: 56–67 cm
• Replacement/consumable items: 3D pillow set; set of straps and buckles
